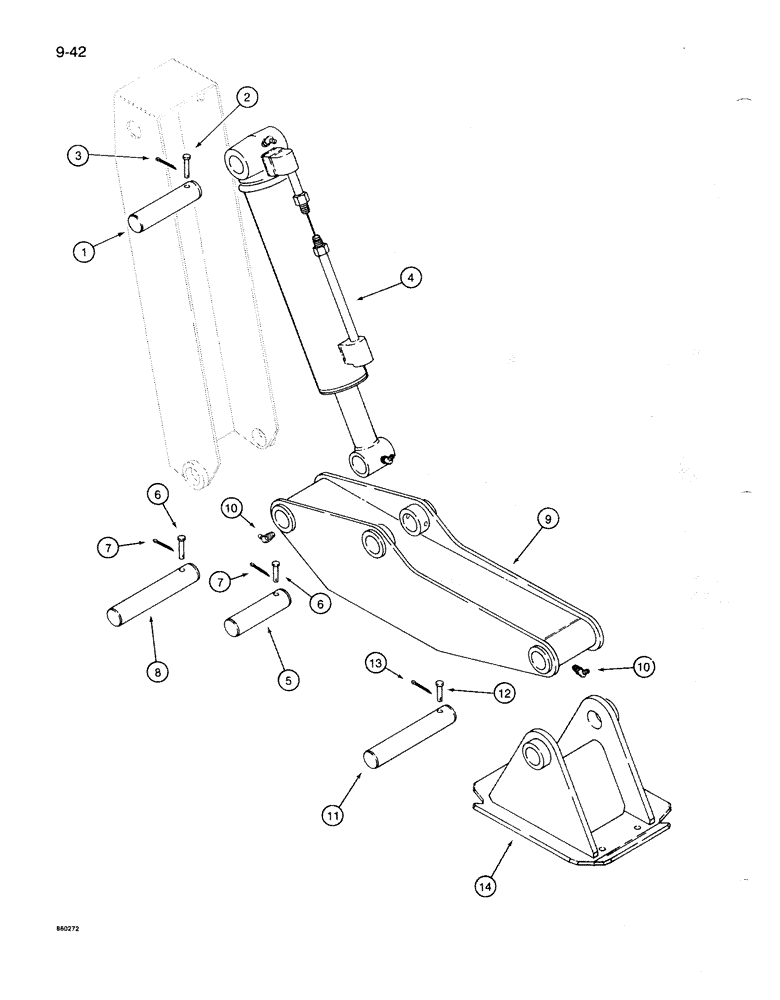

Запчасти Case 1085B (9-042) - OUTRIGGER ARMS AND PLATES, LOGGER BOOM MODELS (09) - CHASSIS

1

S205350

PIN

- closed end of cylinder to main frame weldment

4шт.

2

S61972

PIN

- clevis, upper cylinder mounting pin

4шт.

3

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

4

G105017

CYLINDER

- outrigger, parts list Fig. 8-100

4шт.

5

S205349

PIN

- rod end of cylinder to outrigger arm

4шт.

6

S61973

AXLE PIN

PIN - clevis, used with outrigger arm and cylinder mounting pins

8шт.

7

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

8шт.

8

S205348

PIN

- outrigger arm to main frame weldment

4шт.

9

S956921

ARM ASSY.

ARM - outrigger

4шт.

10

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

3шт.

11

S205348

PIN

- plate to outrigger arm

4шт.

12

S61973

AXLE PIN

PIN - clevis, plate to arm pin

4шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

14

S618922

PAD

PLATE - outrigger

4шт.
