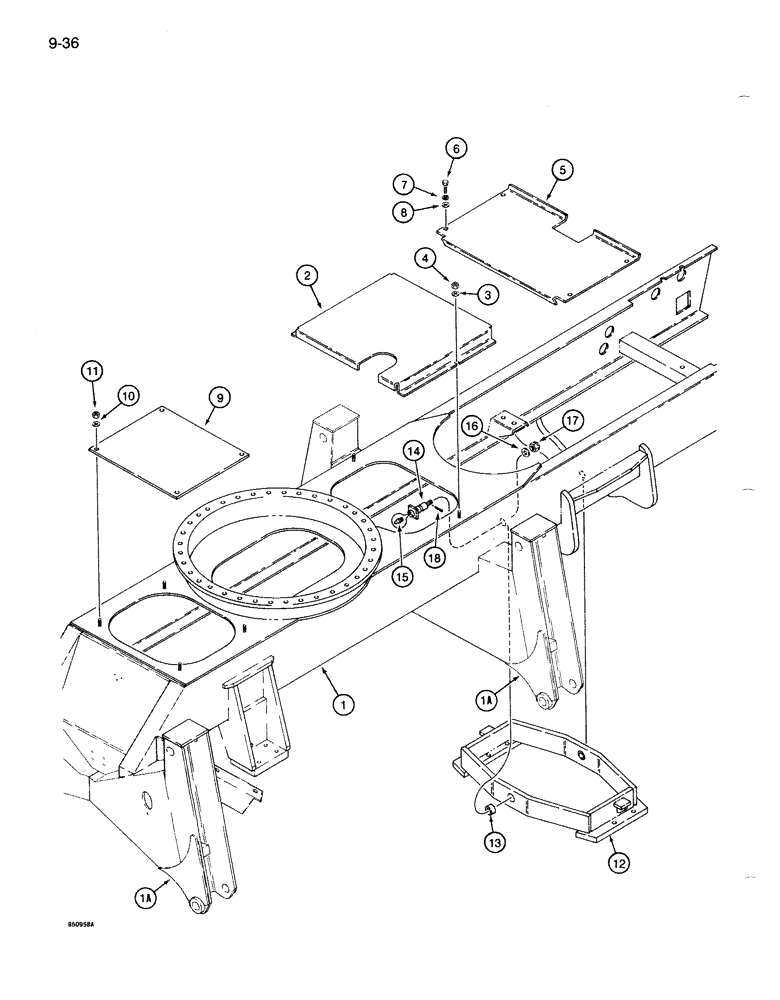

Запчасти Case 1085B (9-036) - MAIN FRAME (09) - CHASSIS

1

S956742

FRAME

- main, with rear outriggers, standard for 1085B, not shown

1шт.

1

S956898

FRAME

- main, with front and rear outriggers, optional for 1085B, used on all 1086B loggers

1шт.

1a

S517456

PLATE

- outrigger reinforcement, weld on, used with S956898 frame

8шт.

See instruction sheet 8-75340 for welding on Ref. 1A plate.

1шт.

2

S514321

COVER

- transmission

1шт.

3

S95569

WASHER

- flat, hardened, special

2шт.

4

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

5

S514322

COVER

- torque converter

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

S95569

WASHER

- flat, hardened, special

4шт.

9

S241667

PLATE

- access, outrigger valve

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

11

131-52

NUT,3/8"-16, GC

NUT - light hex, self locking, 3/8 inch NC

4шт.

12

S501747

BRACKET

- mounting, front axle to frame, Includes, Ref. 13

1шт.

13

S74927

BUSHING

- bracket, pivot pin

2шт.

14

S209161

PIN ASSY.

PIN - pivot, bracket to frame, Includes, Ref. 15

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

16

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

2шт.

17

129-258

NUT

- heavy hex, slotted, 3/4 inch NC

2шт.

18

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.
