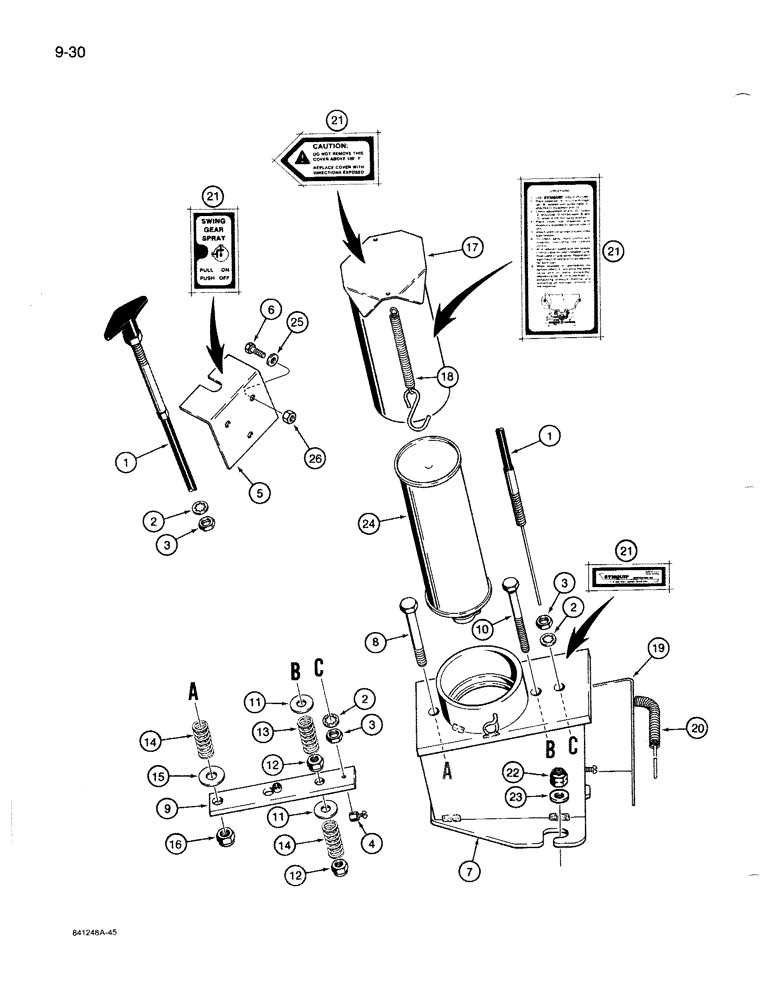

Запчасти Case 1085B (9-030) - SWING GEAR SPRAY LUBRICATOR (09) - CHASSIS

1

N9488

CABLE ASSY.

CABLE ASSEMBLY - remote control, Includes, Ref. 1 - 4

1шт.

2

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

3шт.

4

N9489

STOP

COLLAR ASSEMBLY - cable stop

1шт.

5

N9490

BRACKET

- cable mounting

1шт.

6

276-2078

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

3шт.

7

NSS

NOT SOLD SEPARAT

FRAME - lubricator

1шт.

8

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Welds to frame Hex, 3/8"-16 x 3", G5

1шт.

9

N9491

ARM

- spray control

1шт.

10

113-116

BOLT,Hex, 5/16" - 18 x 3-1/2", SST

- hex, 5/16 NC x 3-1/2 inch, special thread length

1шт.

11

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

2шт.

12

131-462

NUT,5/16"-18

NUT - heavy hex, self-locking, 5/16 inch NC

2шт.

13

N9492

SPRING

- heavy

1шт.

14

N9493

SPRING

- light

2шт.

15

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

16

131-463

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

1шт.

17

N9494

HOUSING

TUBE - spray can container

1шт.

18

N9495

SPRING

RETAINER - spring and hook, tube to lubricator frame

2шт.

19

N9496

DOOR

- lubricator frame

1шт.

20

N9497

SPRING

RETAINER - spring and hook, door

1шт.

21

N9498

KIT

- decal, swing gear spray lubricator, includes four decals

1шт.

22

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

23

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 1/8 inch, hardened

2шт.

24

331-437

LUBRICANT

- swing gear, 20 oz. spray can, Symquip No. OLGD-20

1шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.
