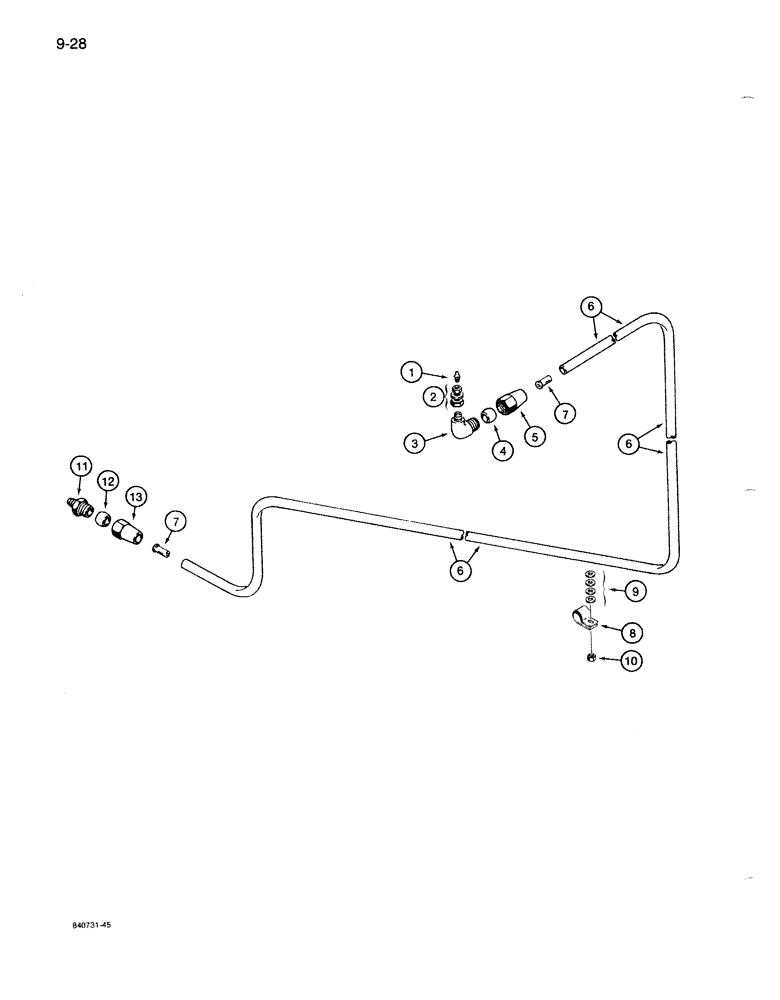

Запчасти Case 1085B (9-028) - TURNTABLE BEARING LUBRICATION LINE (09) - CHASSIS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

2

217-226

COUPLING

ADAPTER - bulkhead, 1/8 fem PT x 5/8-18 inch str thread

1шт.

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, Includes, Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

FITTING - 90 degree, male

1шт.

4

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

5

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

6

REF

INSTRUCTION

TUBE - nylon, lubrication line, 52 inch (1321 mm) long, cut from S118405 bulk roll, see below, see Fig. 9-060, Ref. 9 and 9A, for tubes used with 30 and 60 inch cab risers

1шт.

7

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD

2шт.

8

A61275

CLIP

CLAMP - nylon tube to bottom of cab floor plate

1шт.

9

95-8

WASHER,1/2"

flat (9/16 x 1-3/8 x 7/64") 1/2"

4шт.

10

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

222-1839

FITTING,17/32"-24 x 1/8" NPT

ADAPTER - compression, 3/8 tube OD x 1/8 inch PT, Includes, Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

FITTING - straight, male

1шт.

12

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

13

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
