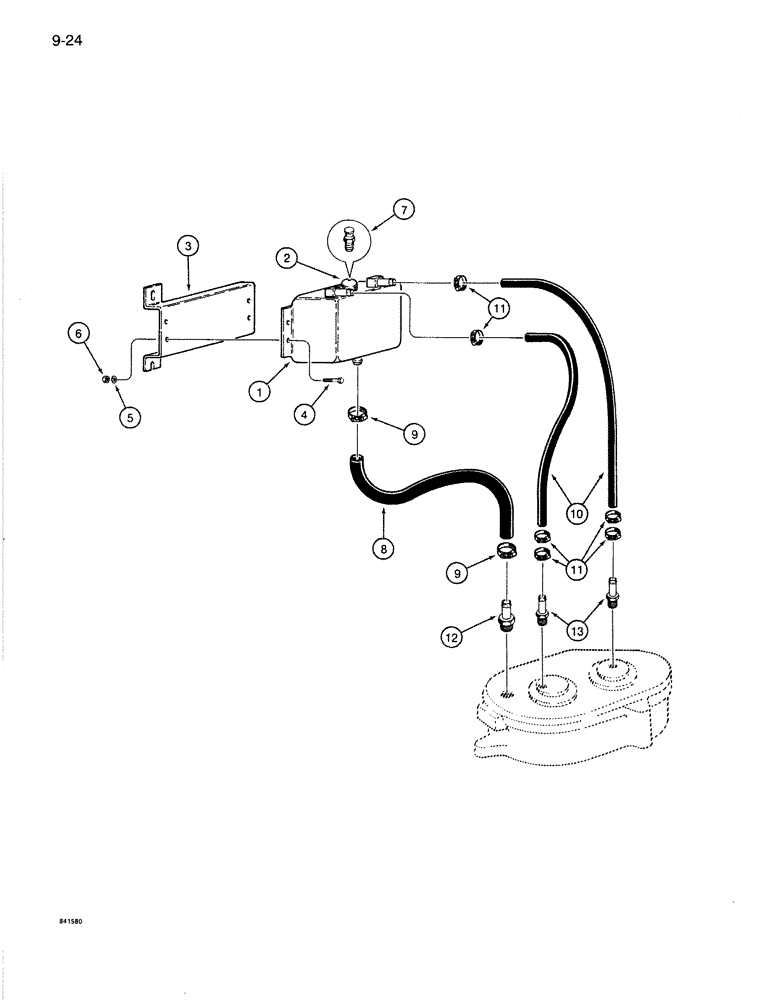

Запчасти Case 1085B (9-024) - SWING GEARBOX LUBRICATION SYSTEM (09) - CHASSIS

S516470

CONTAINER

RESERVOIR ASSEMBLY - lubricant, Includes, Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - lubricant

1шт.

2

N8793

CAP

- reservoir

1шт.

3

S242000

BRACKET

- reservoir, used on units without mounting holes on shroud door, if used

1шт.

4

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

6

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

4шт.

7

L33264

BREATHER

- reservoir

1шт.

8

S120538

HOSE - gearbox cover, 25 inch (635 mm) long, cut from S118576 bulk hose, see below

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 - 1-1/16 inch dia, hose

2шт.

10

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

- to bearing covers, Cut from S120557 bulk hose, See below 0.25" ID x 32.00", SAE 30R6 or SAE 100R3

2шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

6шт.

12

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

- stem, straight, 5/8 hose ID x 3/8 inch PT, gearbox

1шт.

13

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

- stem, straight, 1/4 hose ID x 1/8 inch PT, bearing covers

2шт.

S118576

HOSE,0.62" ID BULK

0.625" ID x 300.00" Bulk

1шт.

S120557

HOSE,0.25" ID x 300.00", SAE 30R6

Bulk 0.25" ID x 300.00", SAE 30R6

1шт.
