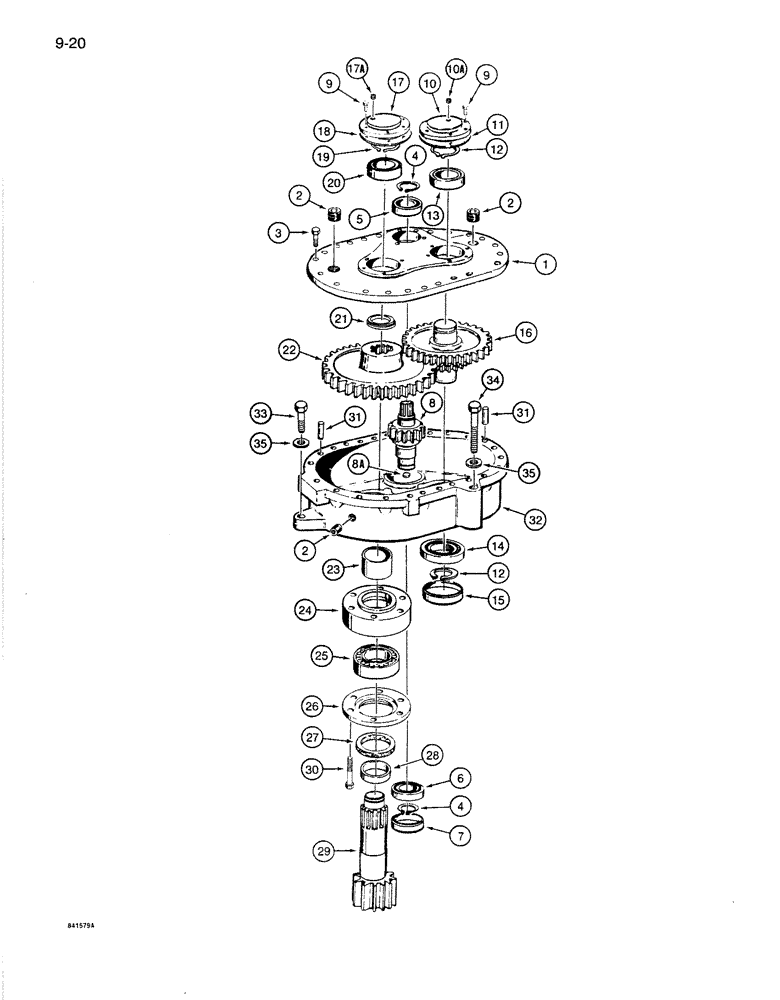

Запчасти Case 1085B (9-020) - SWING GEARBOX ASSEMBLY (09) - CHASSIS

S955795

REDUCER

GEARBOX ASSEMBLY - swing, Includes, Ref. 1 - 28

1шт.

1

S603758

COVER

- gearbox housing

1шт.

Must use Loctite in place of gaskets.

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

4шт.

3

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

22шт.

4

A7409

SNAP RING,#137, Ext

Ring, Snap, , bearing, input shaft #137, Ext

2шт.

5

A37733

BALL BEARING

BEARING - ball, input shaft, spline end

1шт.

6

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, input shaft, plug end

1шт.

7

S114619

PLUG

- gearbox housing, at input shaft

1шт.

8

S506736

PINION

- gear and shaft, input

1шт.

8a

41-1015

PLUG,Cup, 15/16"

- cup, 15/16 inch, pinion shaft

1шт.

9

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

10

S242001

COVER

- bearing, drive gear

1шт.

10a

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

11

S103261

GASKET

- bearing cover, drive gear

1шт.

12

A17903

SNAP RING,#156, Ext

Ring, Snap, , bearing, drive gear #156, Ext

2шт.

13

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING - ball, drive gear, cover end

1шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, drive gear,housing end

1шт.

15

S114620

PLUG

- gearbox housing, at drive gear

1шт.

16

S603733

GEAR

- drive, intermediate

1шт.

17

S242002

COVER

- bearing, output shaft

1шт.

17a

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

18

S85842

GASKET

- bearing cover, output shaft

1шт.

19

A144595

SNAP RING,#156, Ext

Ring, Snap, , brg, output shaft #156, Ext

1шт.

20

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING - roller, output shaft, cover end

1шт.

21

S214014

SPACER

- bearing to driven gear, cover end

1шт.

22

S603736

GEAR

- driven, output shaft

1шт.

23

S225231

SPACER

- bearing to driven gear, output end

1шт.

24

S508461

RETAINER

- roller bearing, output shaft

1шт.

Must use Loctite in place of gaskets.

1шт.

25

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING - roller, output shaft, output end

1шт.

26

S508460

RETAINER

- oil seal

1шт.

Must use Loctite in place of gaskets.

1шт.

27

S98415

OIL SEAL

- oil, output shaft

1шт.

28

S225232

OIL SEAL

RING - backup, oil seal, output shaft

1шт.

Must use Loctite in place of gaskets.

1шт.

B17423

LOCTITE

- 271 Red, 50 ml bottle

1шт.

29

S618557

SHAFT

PINION - shaft and gear, output

1шт.

30

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch, grade 8

6шт.

31

S64319

CALIPER

PIN - dowel, gearbox, Serial Range: housing-cover

2шт.

32

S613678

CASE

HOUSING - gearbox, swing

1шт.

Must use Loctite in place of gaskets.

1шт.

33

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8

1шт.

34

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- hex, 7/8 NC x 5-3/4 inch grade 8

2шт.

35

S92341

WASHER

- flat, 7/8 inch, hardened

3шт.

B17423

LOCTITE

- 271 Red, 50 ml bottle

1шт.
