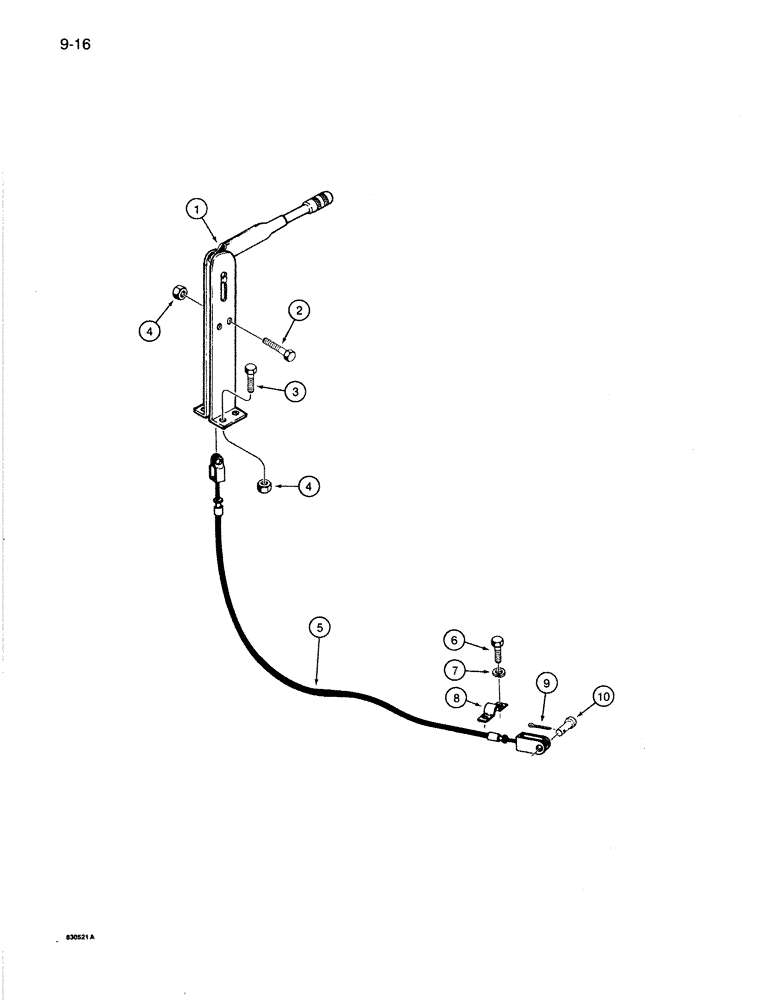

1
S514575
LEVER
- swing brake
1шт.
2
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8 NC x 1-3/4 inch
2шт.
3
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
4шт.
4
131-52
NUT,3/8"-16, GC
NUT - light hex, self locking, 3/8 inch NC
6шт.
5
S33995
CABLE
- swing brake
1шт.
See Fig. 9-058, Refs. 1 and 1A, for cables used with 30 and 60 inch cab risers.
1шт.
6
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
7
492-11038
LOCK WASHER,3/8"
2шт.
8
A55980
CLAMP
- brake cable
1шт.
9
32-68
COTTER PIN,3/32" x 1/2"
PIN - cotter, 3/32 x 1/2 inch
1шт.
10
S10715
PIN
- clevis, 1/4 x 7/8 inch
1шт.
