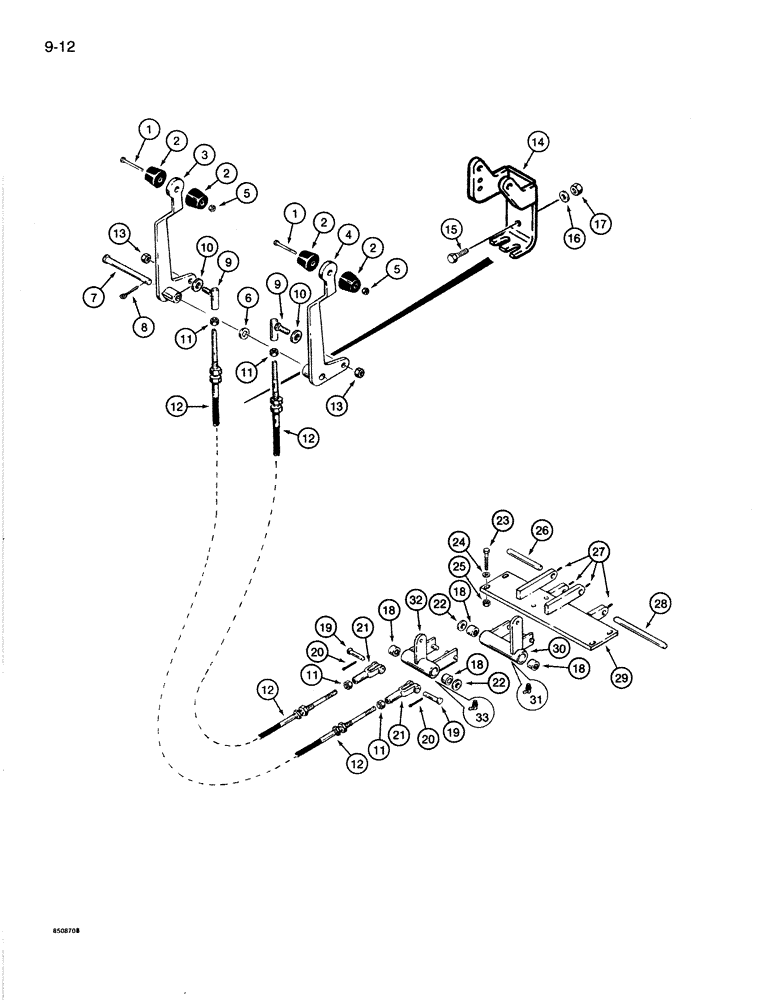

Запчасти Case 1085B (9-012) - UPPER SHIFTER CONTROLS (09) - CHASSIS

1

71-524

SCREW,Slotted Fil Hd, 5/16"-18 x 1 1/2"

- Fillister head slotted, 5/16 NC x 1-1/2 inch

2шт.

2

D47600

KNOB

INSULATOR - lever

4шт.

3

S517643

LEVER ASSY.

LEVER - shift, left-hand, replaces S515134 lever

1шт.

4

S515132

HANDLE

LEVER - shift, right-hand

1шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

1шт.

7

S61972

PIN

- clevis, 1/2 x 3-1/4 inch, grip length

1шт.

8

32-824

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

9

A60604

BALL JOINT

JOINT - ball, at shift lever

2шт.

10

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, used as a spacer

1шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

4шт.

12

S233567

CABLE

- shift

2шт.

See Fig. 9-058, Refs. 2 and 2A, for cables used with 30 and 60 inch cab risers.

1шт.

13

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF

2шт.

14

S515136

BRACKET

- mounts shift cables and micro switches to right-hand side panel in cab

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

17

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

18

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

BEARING - needle, bellcrank

4шт.

19

S10737

CLEVIS PIN

PIN - clevis, 5/16 x 1 inch, grip length

2шт.

20

432-810

COTTER PIN,1/8" x 5/8"

1/8" x 5/8"

2шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16 inch NF, cable

2шт.

22

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch, used as a spacer

1шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

25

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

26

S93157

SHAFT

- upper, bracket

1шт.

27

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket, 1/4 NC x 3/8 inch, cup point

4шт.

28

S84995

SHAFT

- lower, bracket

1шт.

29

S506136

BRACKET

- mounting

1шт.

30

S506135

ARM ASSY.

BELLCRANK - right-hand, cable mounting, Includes, Ref. 31

1шт.

31

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 65 degree, 1/4-28 taper x 3/4 inch

1шт.

32

S506132

ARM ASSY.

BELLCRANK - left-hand, cable mounting, Includes, Ref. 33

1шт.

33

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 65 degree, 1/4-28 taper x 3/4 inch

1шт.
