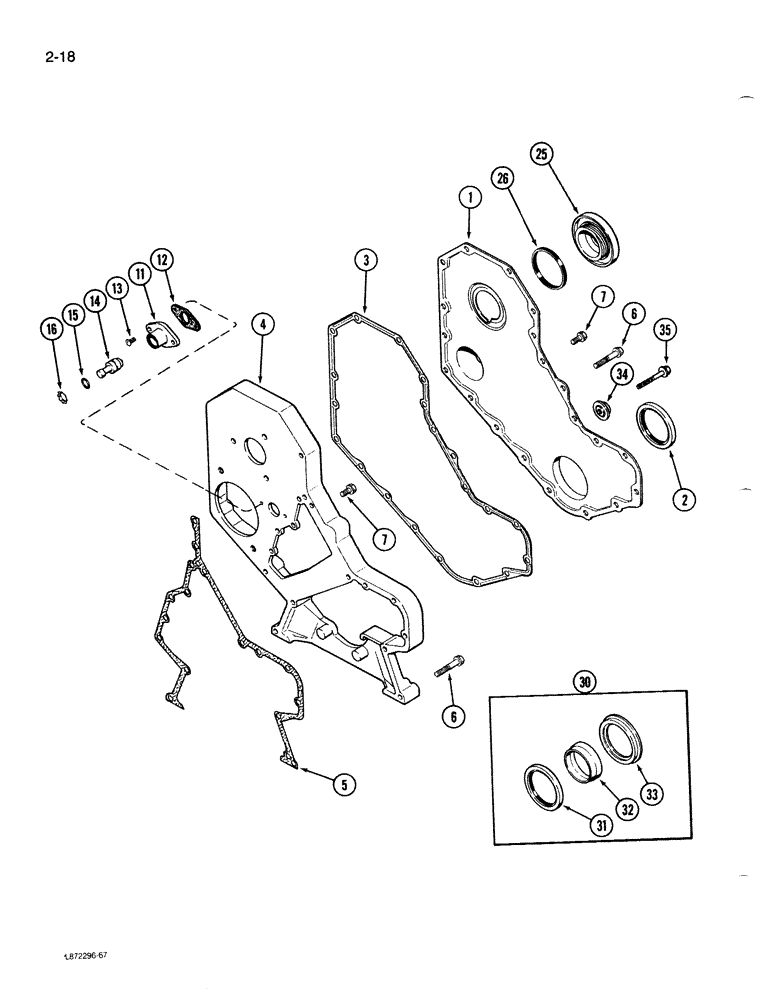

Запчасти Case 1085B (2-018) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref 30)

1шт.

3

J914385

GASKET,1.02mm Thk

- gear housing (Replaces J910500, J916131)

1шт.

4

J910411

HOUSING

- timing gear (Replaces J905731)

1шт.

5

J907836

GASKET

-, Serial Range: housing-block

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex, 8 mm - 1.25 x 50 mm

11шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

11

J905933

HOUSING

- timing pin

1шт.

12

J905595

GASKET

- pin housing, timing

1шт.

13

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

15

J903927

O-RING,15.6 mm ID

- timing pin

1шт.

16

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

25

J903463

PLUG,M63 x 5

- access, front

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

30

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 60 mm

1шт.
