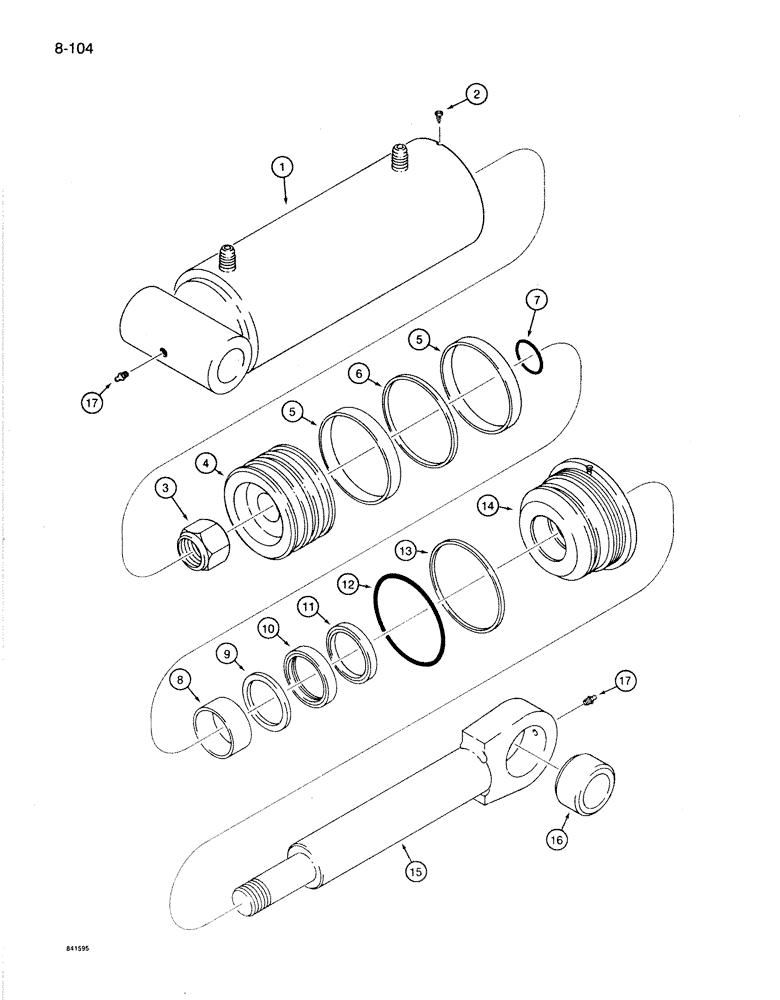

Запчасти Case 1085B (8-104) - S618639 WRIST-O-TWIST CYLINDER, WITH SOLID PISTON (08) - HYDRAULICS

S618639

CYLINDER

ASSEMBLY - Wrist-O-Twist, 4 (102 mm) ID x 6-7/16 inch (164 mm) stroke, Includes, Ref. 1 - 17

1шт.

1

S516775

CYLINDER,14.22, 2.465" L

TUBE - cylinder

1шт.

2

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

3

131-490

LOCK NUT,1 1/4"-12

NUT - hex, self-locking, 1-1/4 inch NF

1шт.

4

S516773

PISTON

- cylinder

1шт.

5

S120057

RING

- wear, piston

2шт.

6

S120045

SEAL

- piston

1шт.

7

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Piston to rod seal -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

8

S120058

BEARING LINER

BUSHING - gland (Replaces G120058)

1шт.

9

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

10

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- piston rod, wide

1шт.

11

S40025

WIPER SEAL

WIPER - piston rod, outer

1шт.

12

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- 3-5/8 ID x 1/8 inch wide, gland

1шт.

13

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

14

S516774

GLAND

- cylinder

1шт.

15

S206996

PISTON ROD

ROD ASSEMBLY - piston, 2 inch (51 mm) diameter, Includes, Ref. 16

1шт.

16

S202071

BUSHING

- piston rod

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
