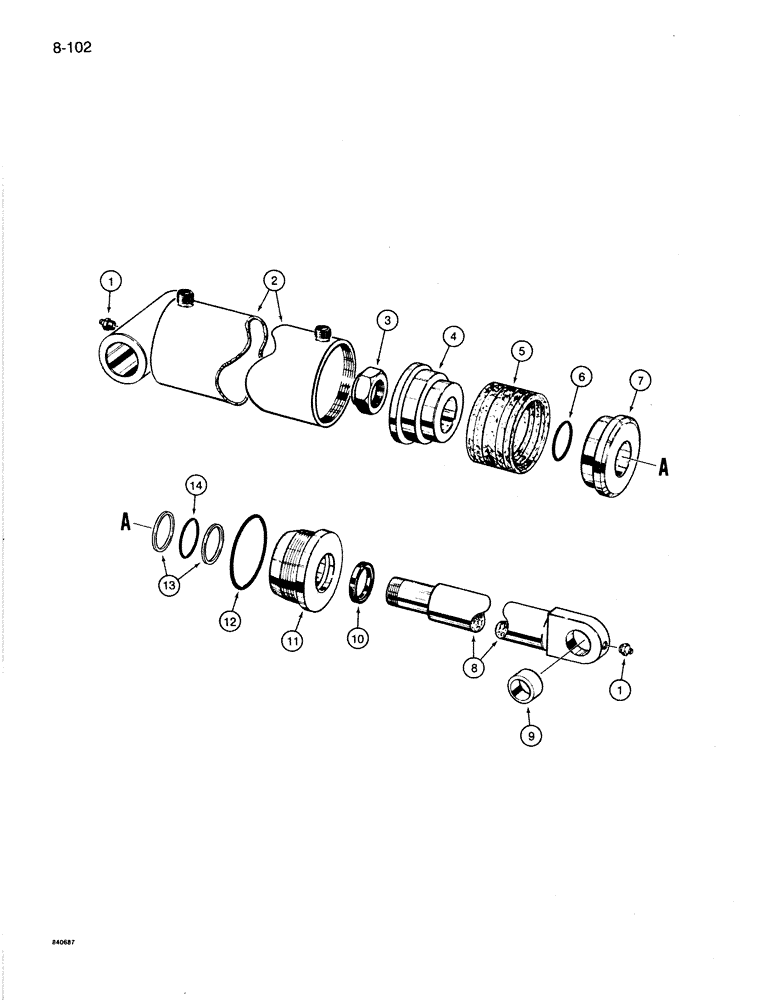

Запчасти Case 1085B (8-102) - S37583 WRIST-O-TWIST CYLINDER, WITH SPLIT PISTON (08) - HYDRAULICS

S37583

CYLINDER

ASSEMBLY - Wrist-O-Twist, 4 (102 mm) ID x 6-7/16 inch (164 mm) stroke, Includes, Ref. 1 - 14

1шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

2

S206998

TUBE,13.84" L

- cylinder

1шт.

3

131-490

LOCK NUT,1 1/4"-12

NUT - hex, self-locking, 1-1/4 inch NF

1шт.

4

S26052

PISTON

- split, nut end half

1шт.

5

S26050

GROMMET

PACKING ASSEMBLY - piston

1шт.

6

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Piston, inner -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

7

S26053

PISTON

- split, rod end half

1шт.

8

S206996

PISTON ROD

ROD ASSEMBLY - piston, 2 inch (51mm) diameter, Includes, Ref. 9

1шт.

9

S202071

BUSHING

- piston rod

1шт.

10

S40025

WIPER SEAL

WIPER - piston rod, outer

1шт.

11

S28553

HEAD

GLAND - cylinder

1шт.

12

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Gland seal -242, 70 Duro, 3.984" ID x .139" Thk

1шт.

13

T11023

SEAL

RING - backup, rod seal O-ring

2шт.

14

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- rod seal

1шт.
