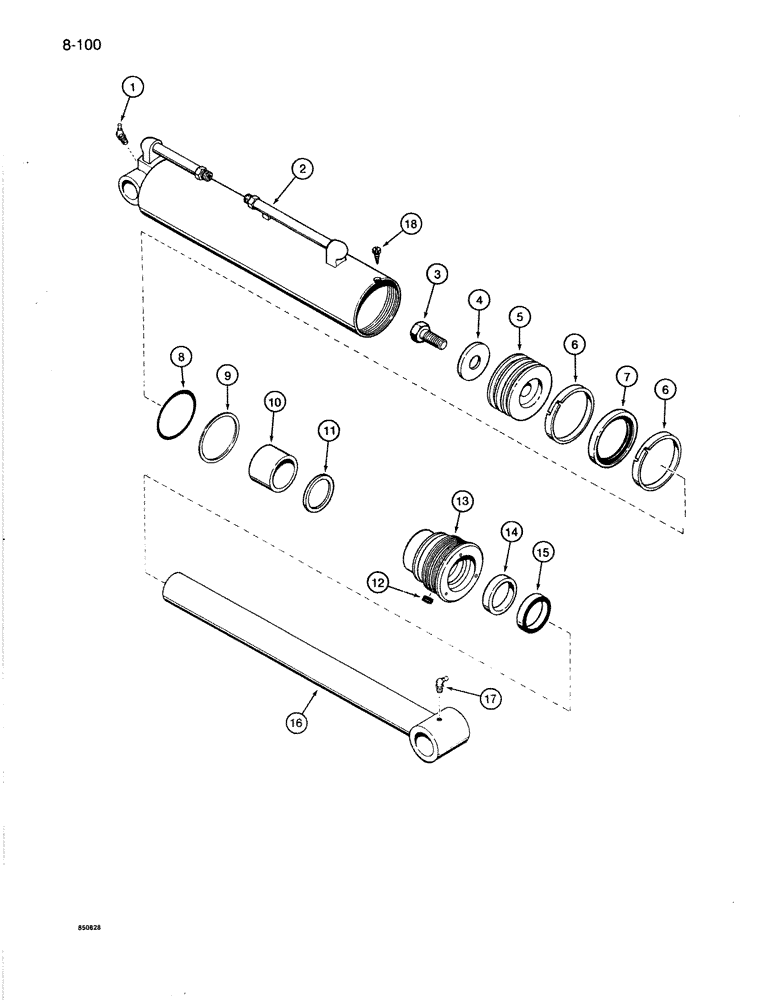

Запчасти Case 1085B (8-100) - OUTRIGGER CYLINDER (08) - HYDRAULICS

G105017

CYLINDER

ASSEMBLY - outrigger, 5-1/2 (140 mm) ID x 17-1/2 inch (445 mm) stroke, Includes, Ref. 1 - 18

2-4шт.

1

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 30 degree, 1/8 PT x 29/32 inch

1шт.

2

S602590

TUBE

- cylinder

1шт.

3

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex, 1-1/2 NF x 3-1/2 inch, grade 8

1шт.

4

G104990

WASHER

- flat, hardened, special

1шт.

G105018

PISTON

ASSEMBLY - cylinder, Includes, Ref. 5 - 7

1шт.

5

G105019

PISTON

- cylinder

1шт.

6

S110890

SEAL

RING - wear, piston

2шт.

Part of Seal Kit, P/N G105564

1шт.

7

S228606

SEAL

SEAL ASSEMBLY - piston

1шт.

Part of Seal Kit, P/N G105564

1шт.

G104352

GLAND

ASSEMBLY - cylinder, Includes, Ref. 8 - 15

1шт.

8

D36183

O-RING,5.109" ID x 5.387" OD

- gland

1шт.

Part of Seal Kit, P/N G105564

1шт.

9

G107971

RING

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N G105564

1шт.

10

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- gland

1шт.

Part of Seal Kit, P/N G105564

1шт.

11

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G105564

1шт.

12

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

13

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

14

G109052

SEAL

ASSEMBLY - piston rod, wide

1шт.

Part of Seal Kit, P/N G105564

1шт.

15

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G105564

1шт.

16

S220049

ROD

- piston, cylinder, 2-1/2 inch (64 mm) diameter

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

G105564

KIT

- seal, Includes: Ref. 6 - 11, 14, and 15

1шт.
