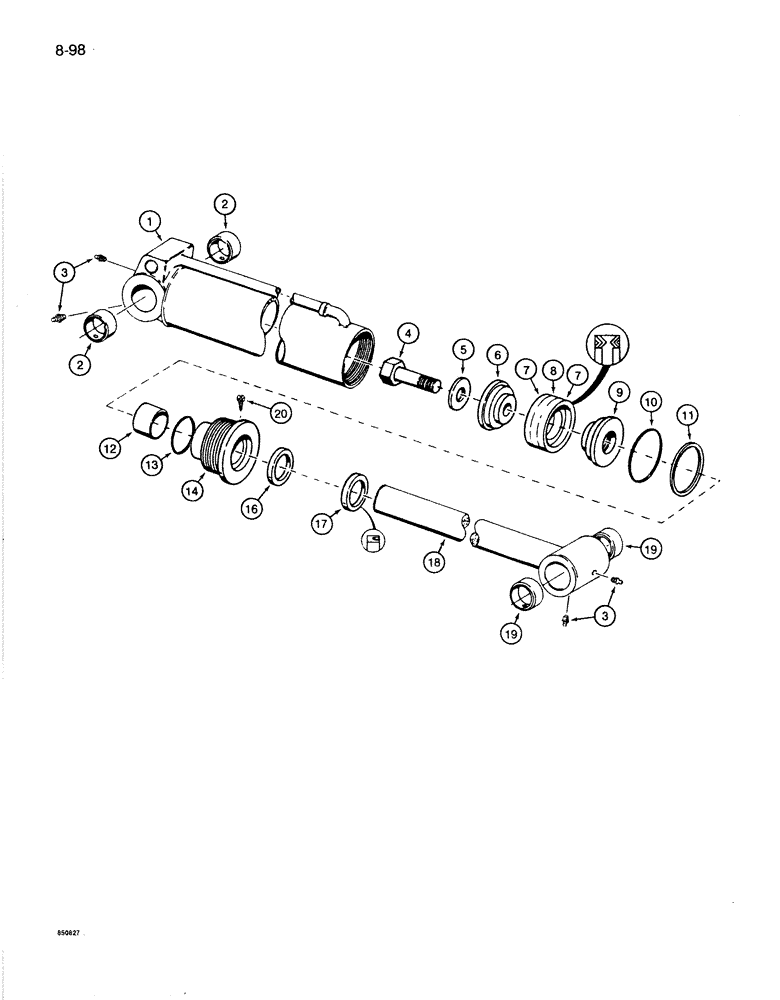

Запчасти Case 1085B (8-098) - TOOL CYLINDER (08) - HYDRAULICS

G109007

CYLINDER

ASSEMBLY - tool, 5-1/2 (140 mm) ID x 35-1/8 inch (892 mm) stroke, Includes, Ref. 1 - 20

1шт.

G109008

TUBE

ASSEMBLY - cylinder, Includes, Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- tube

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

4

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex, 1-1/2 NF x 3-1/2 inch, grade 8

1шт.

5

G32666

WASHER

- flat, special, hardened

1шт.

6

D49165

PISTON

- split, nut end half

1шт.

7

D47207

GASKET KIT

PACKING - piston

2шт.

Part of Seal Kit, P/N G105514

1шт.

8

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - packing

1шт.

9

D49164

PISTON

- split, rod end half

1шт.

G104352

GLAND

ASSEMBLY - cylinder, Includes, Ref. 10 - 17

1шт.

10

D36183

O-RING,5.109" ID x 5.387" OD

- gland

1шт.

Part of Seal Kit, P/N G105514

1шт.

11

G107971

RING

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N G105514

1шт.

12

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- gland

1шт.

Part of Seal Kit, P/N G105514

1шт.

13

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit, P/N G105514

1шт.

14

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

15

RESERVED

1шт.

16

G109052

SEAL

ASSEMBLY - piston rod, wide

1шт.

Part of Seal Kit, P/N G105514

1шт.

17

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G105514

1шт.

S220045

ROD

ASSEMBLY - piston, cylinder, 2-1/2 inch (64 mm) diameter, Includes, Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

ROD - piston, cylinder

1шт.

19

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- piston rod

2шт.

20

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

G105514

KIT

- seal, Includes: Ref. 7, 10, 11, 12, 13, 16, and 17

1шт.
