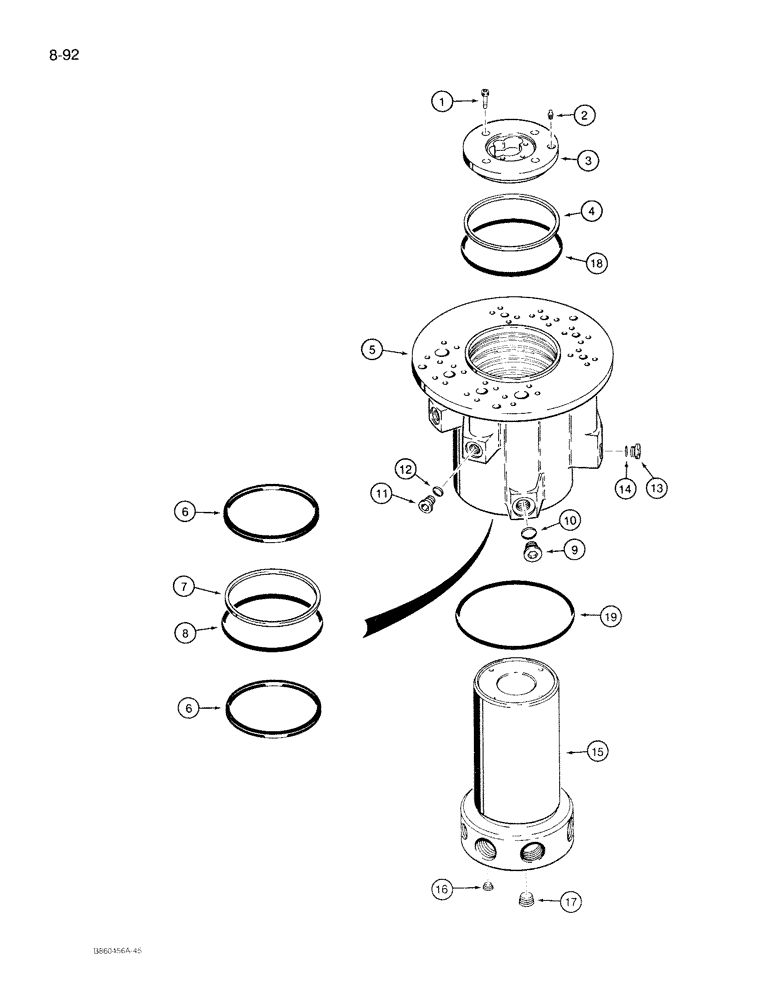

Запчасти Case 1085B (8-092) - 8 PORT HYDRAULIC SWIVEL, WITH SPLIT FLANGE TUBE PORTS (08) - HYDRAULICS

S956936

PIVOT

SWIVEL ASSEMBLY - hydraulic, 8 port, Includes, Ref. 1 - 19

1шт.

1

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8 NC x 1-1/4 inch

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

3

N13743

FLANGE

COVER - swivel assembly

1шт.

4

N13744

WASHER

- thrust

1шт.

N13738

HOUSING ASSY.

HOUSING ASSEMBLY - swivel, Includes, Ref. 5 - 14

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - swivel

1шт.

Ref #5 - Wear Rings inside this Housing, are not Serviced Separately. They can be loose and still function properly as long as they are in the proper slots.

1шт.

6

N13739

SEAL

- end, shaft

2шт.

7

N13740

SEAL

- inner, shaft

9шт.

8

N13741

RING

- load, inner seal

9шт.

9

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

11

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 12 Hex Soc, 1 1/16"-12 ORB

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 14 Hex Soc, 3/4"-16 ORB

4шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

N13742

STEM

SHAFT ASSEMBLY - swivel, Includes, Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - swivel

1шт.

16

221-1844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT, assemble with 242 Blue Loctite

1шт.

17

221-1846

PLUG

- hex socket, 1 inch PT, assembly with 242 Blue Loctite

4шт.

18

N13745

O-RING

- top, Serial Range: cover-housing

1шт.

19

N13746

O-RING

- bottom, Serial Range: shaft-housing

1шт.
