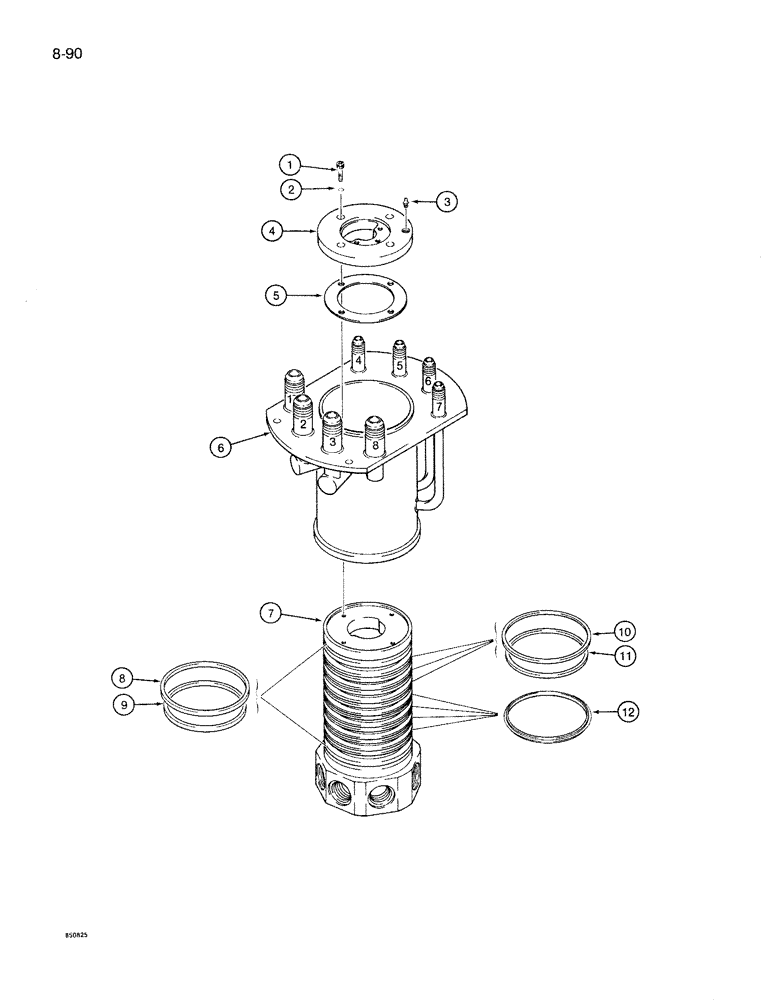

Запчасти Case 1085B (8-090) - 8 PORT HYDRAULIC SWIVEL, WITH MALE TUBE PORTS (08) - HYDRAULICS

S613869

KIT

SWIVEL ASSEMBLY - hydraulic, 8 port, no longer available, for service order S619045 swivel conversion kit, parts list Fig. 8-091A, Includes, Ref. 1 - 12

1шт.

1

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8 NC x 1-1/4 inch

4шт.

2

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

4

S506110

COVER

- swivel assembly

1шт.

5

S93138

GASKET

- cover

1шт.

6

S602776

HOUSING

- swivel assembly

1шт.

7

S613870

SHAFT

- swivel assembly

1шт.

8

S93132

SEAL

- slipper, glass-filled, upper and lower

2шт.

9

S118815

RING

- square cut, inside slipper seal, upper and lower

2шт.

10

S112229

SEAL

- Teflon, bronze, three upper grooves

3шт.

11

S115025

SEAL

RING - square cut, three upper grooves

3шт.

12

S113790

SEAL

- crown, four lower grooves

4шт.

S613871

SEAL

KIT - seal, includes items 5 and 8 through 12, no longer available, order seals separately

1шт.
