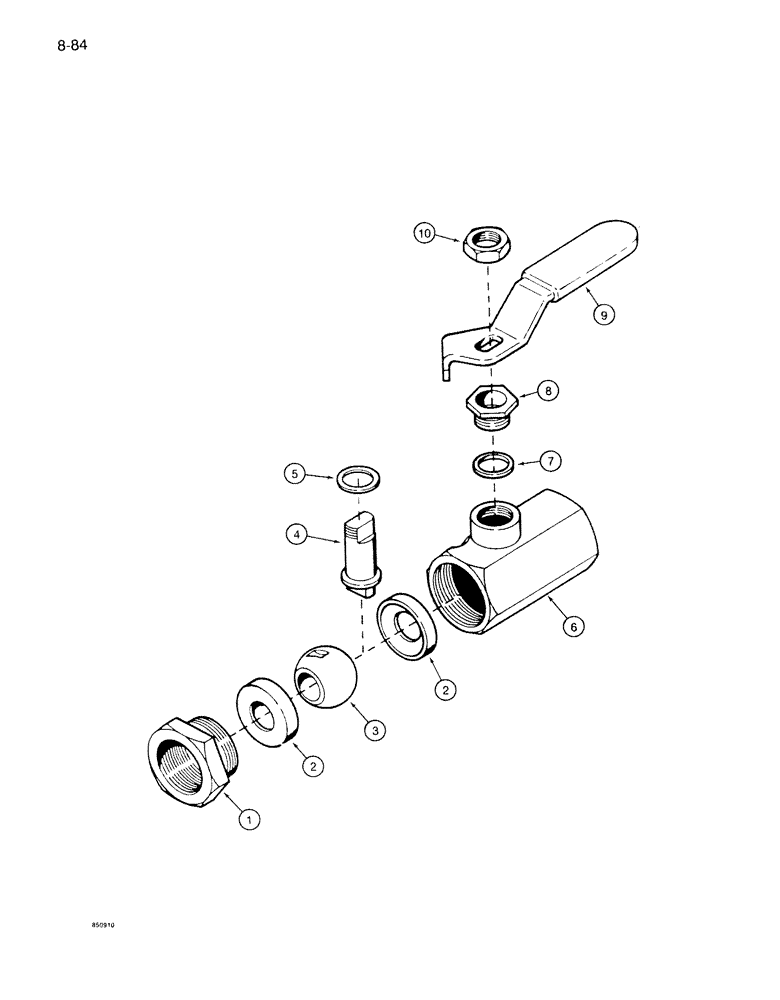

Запчасти Case 1085B (8-084) - SHUTOFF VALVE, USED WITH OPTIONAL FRONT OUTRIGGERS ON 1085B - STANDARD ON 1086B (08) - HYDRAULICS

S512882

VALVE

ASSEMBLY - outrigger shutoff, Includes, Ref. 1 - 10

2шт.

1

NSS

NOT SOLD SEPARAT

NUT - special, seat retaining

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - ball

2шт.

Part of Valve Seat and Seals Kit, P/N S114506

1шт.

3

S114503

BALL - shutoff valve

1шт.

4

S114504

STEM - ball

1шт.

4a

NSS

NOT SOLD SEPARAT

BEARING - stem, not shown

1шт.

Part of Valve Seat and Seals Kit, P/N S114506

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - stem

1шт.

Part of Valve Seat and Seals Kit, P/N S114506

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - stem retainer

1шт.

Part of Valve Seat and Seals Kit, P/N S114506

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - stem

1шт.

9

S114505

LEVER

- valve

1шт.

10

131-81

LOCK NUT,7/16"-20, GB

NUT - light hex, self-locking, 7/16 inch NF

1шт.

S114506

SEAL KIT

- valve seat and seals, Includes: Ref. 2, 4A, 5, and 7

1шт.
