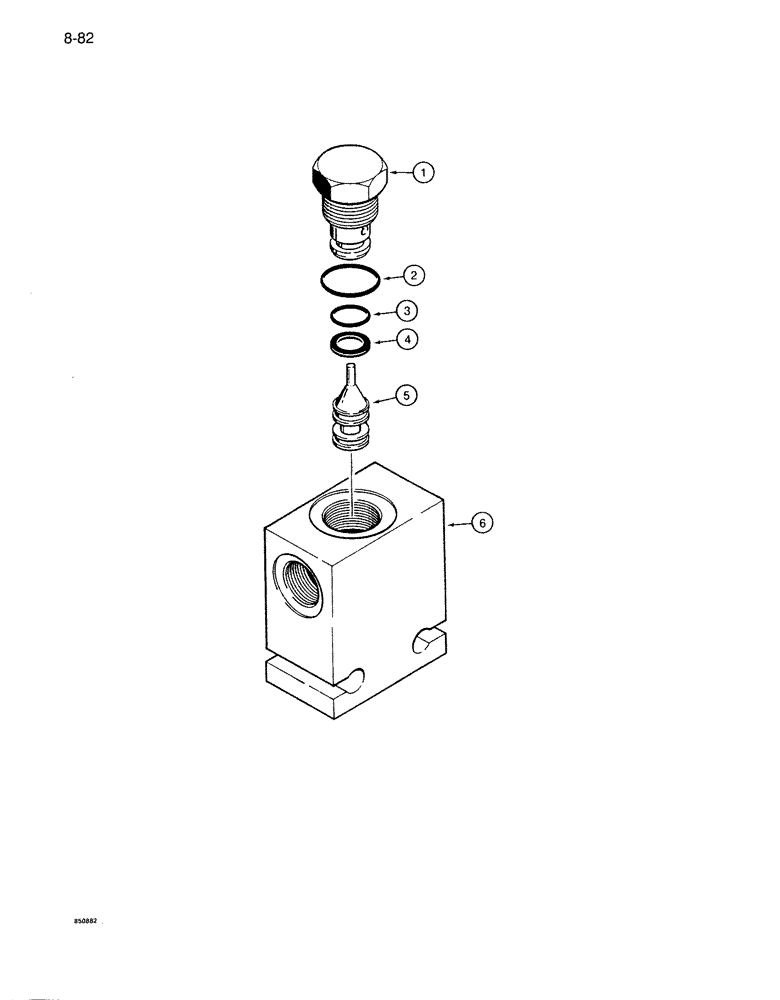

Запчасти Case 1085B (8-082) - OUTRIGGER CHECK VALVE (08) - HYDRAULICS

S516726

VALVE, CHECK

VALVE ASSEMBLY - check, outrigger, Includes, Ref. 1 - 6

4шт.

N9766

CARTRIDGE

ASSEMBLY - check valve, Includes, Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CARTRIDGE - check valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Large

1шт.

3

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- small

1шт.

4

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small O-ring

1шт.

5

N9767

PLUNGER

- check valve

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.
