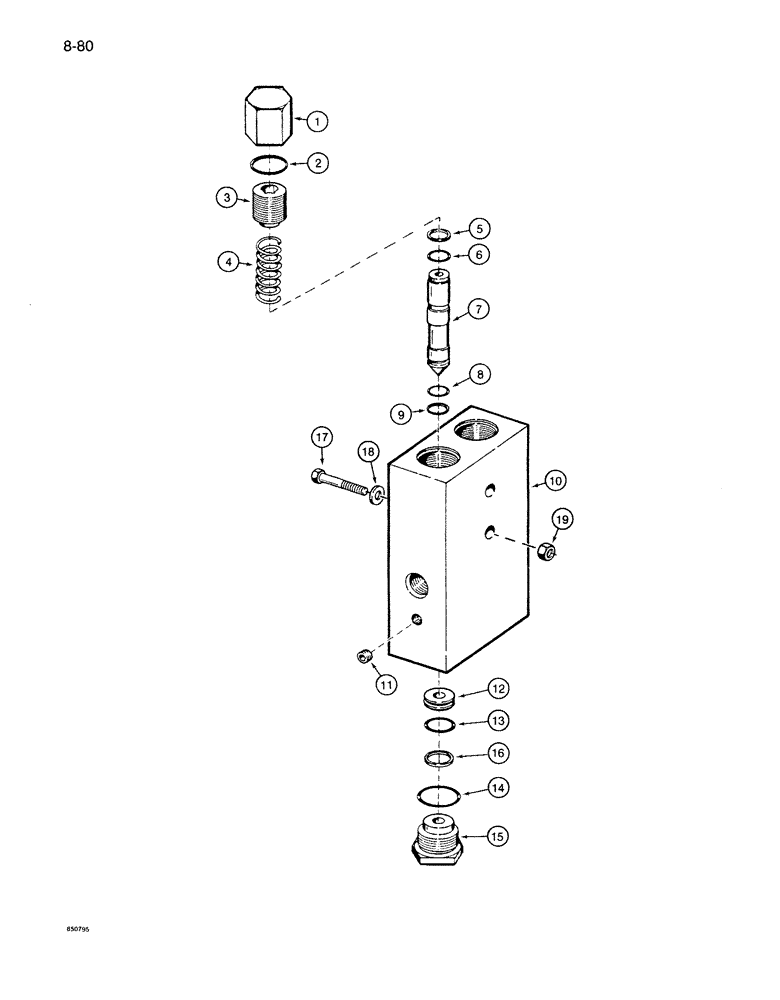

Запчасти Case 1085B (8-080) - POWER SENSING RELIEF VALVE (08) - HYDRAULICS

S514899

VALVE

ASSEMBLY - relief, power sensing, Includes, Ref. 1 - 16

1шт.

1

S99874

CAP

- relief valve

2шт.

2

S99870

WASHER

- seal

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

3

S99875

SCREW

- adjusting

2шт.

4

S99872

SPRING

- plunger

2шт.

5

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, upper O-ring

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

6

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Plunger, upper

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

2шт.

8

W13170

O-RING,0.395" ID x 0.04" Width

- plunger, lower

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

9

S99879

RING

- backup, lower O-ring

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

11

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

12

N8526

SEAT

- relief valve plunger

2шт.

13

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Seat

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Bottom plug

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

15

S99876

CONNECTOR, ELEC

PLUG - bottom

2шт.

16

L30012

RING

- backup, seat O-ring

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

17

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

18

195-2251

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 1/8 inch

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

S107816

SEAL ASSY.

KIT - seal, relief valve, Includes: Ref. 2, 5, 6, 8, 9, 13, 14, and 16

1шт.
