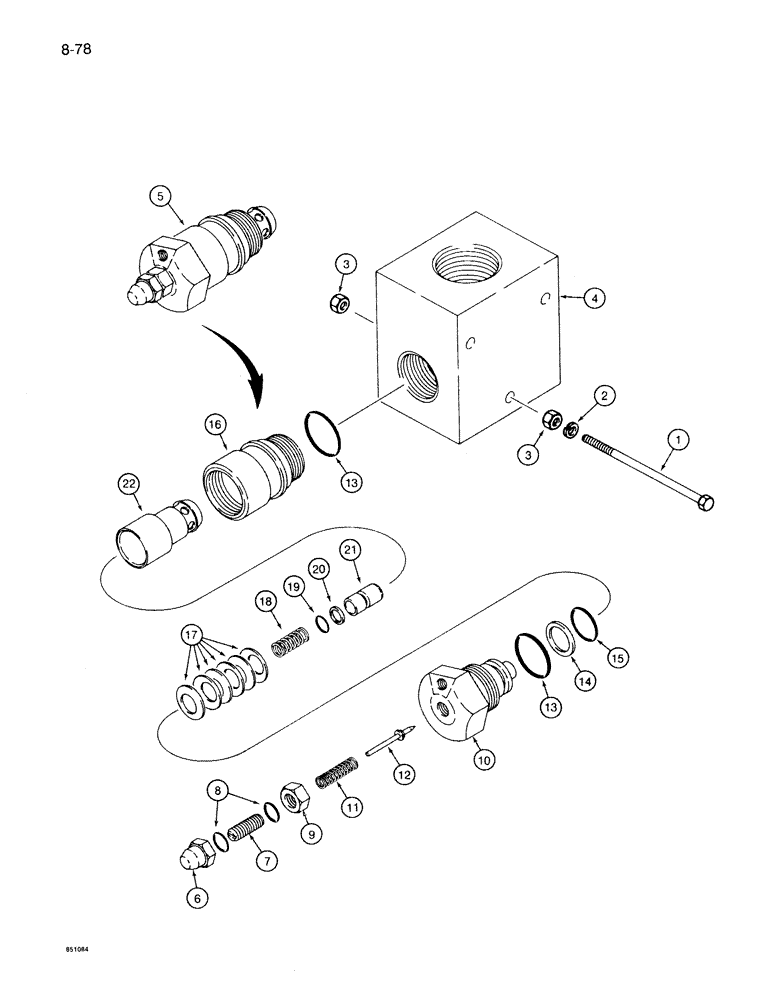

Запчасти Case 1085B (8-078) - MAIN RELIEF VALVE (08) - HYDRAULICS

1

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

6шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

12шт.

S241998

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, Includes, Ref. 4 - 22

2шт.

4

S227664

VALVE

HOUSING - main relief valve

1шт.

5

N8877

VALVE

ASSEMBLY - relief, set at 2600 PSI, Includes, Ref. 6 - 22

1шт.

6

S116073

CAP

NUT - dome, adjusting screw

1шт.

Part of Seal Repair Kit, P/N S117194

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

8

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer

2шт.

Part of Seal Repair Kit, P/N S117194

1шт.

9

S116072

JAM NUT

- jam, adjusting screw

1шт.

Part of Seal Repair Kit, P/N S117194

1шт.

10

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - small

1шт.

12

NSS

NOT SOLD SEPARAT

POPPET - inner, small spring

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch, housing

2шт.

Part of Seal Repair Kit, P/N S117194

1шт.

14

S83071

BACK-UP RING

RING - backup, inner housing O-ring

1шт.

Part of Seal Repair Kit, P/N S117194

1шт.

15

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- housing, inner

1шт.

Part of Seal Repair Kit, P/N S117194

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - special

6шт.

18

NSS

NOT SOLD SEPARAT

SPRING - large

1шт.

19

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- poppet

1шт.

Part of Seal Repair Kit, P/N S117194

1шт.

20

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, poppet O-ring

1шт.

Part of Seal Repair Kit, P/N S117194

1шт.

21

NSS

NOT SOLD SEPARAT

POPPET - inner, large spring

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET - outer, large spring

1шт.

S117194

SEAL KIT

- seal repair, Includes: Ref. 6, 8, 9, 13, 14, 15, 19, and 20

1шт.
