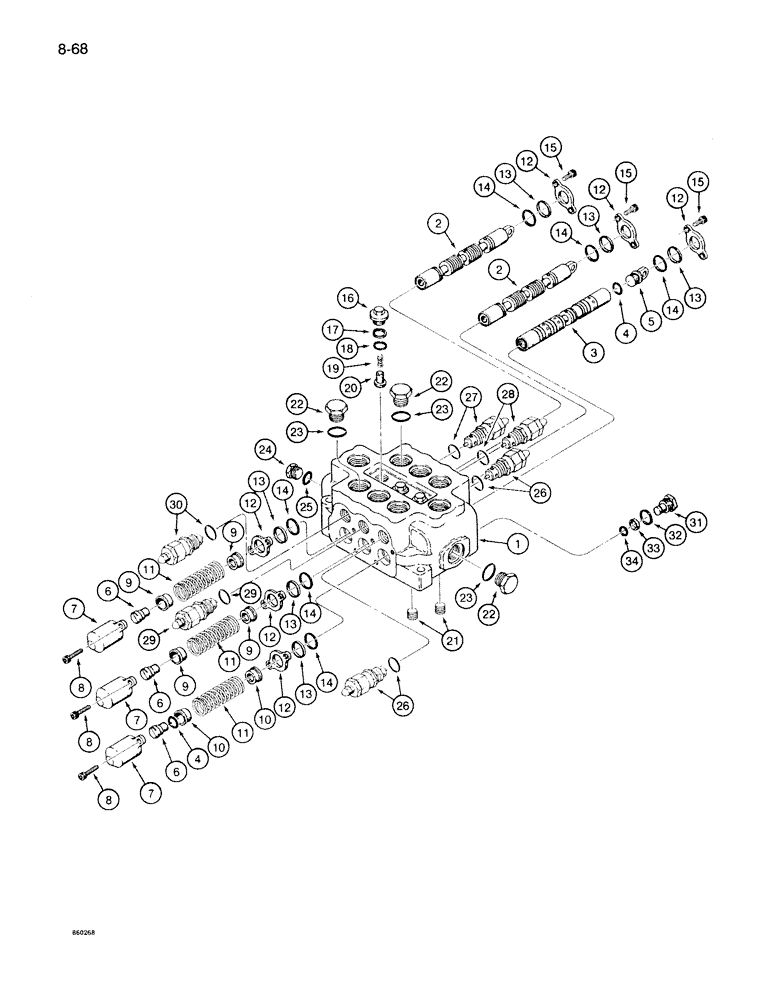

Запчасти Case 1085B (8-068) - THREE SPOOL VALVE - INSIDE, USED WITH LOGGER BOOM (08) - HYDRAULICS

S517086

VALVE

ASSEMBLY - control, inside, logger boom, Includes: Ref. 1 - 34

1шт.

S606890

VALVE BLOCK

VALVE ASSEMBLY - control, basic valve without relief valves, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left-hand and center

2шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - right hand only

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, RH spool ends

2шт.

5

S62289

END

EYE - right-hand spool

1шт.

6

S62290

BOLT

- special, spool ends

3шт.

7

S62278

CAP

- spool

3шт.

8

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket, 3/8 NC x 1 inch

6шт.

9

S62288

SEAT

- spring, left-hand and center spools

4шт.

10

S107817

SEAT

- spring, right-hand spool

2шт.

11

S109959

SPRING

- spool centering

3шт.

12

S13829

PLATE

- seal retaining

6шт.

13

S62092

WIPER

- spool

6шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool

6шт.

15

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8 NC x 1/2 inch

6шт.

S105062

PLUG

ASSEMBLY - check valve, Includes: Ref. 16 - 18

3шт.

16

S105094

PLUG

- check valve

1шт.

17

S105095

RING

- backup, plug O-ring

1шт.

18

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- 1-1/16 ID x 1/8 inch

1шт.

19

S13715

SPRING

- check valve

3шт.

20

S13716

VALVE POPPET

POPPET - check valve

3шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

2шт.

22

273916

PLUG,Hex, 1-5/16" - 12 ORB

RH end port and LH top ports, Includes Ref. 23 Hex Hd, 1 5/16"-12 ORB

3шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

24

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss, left-hand end port, Includes: Ref. 25

1шт.

25

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

26

S616868

VALVE

- circuit relief, parts list Figure 8-76

2шт.

27

S616869

VALVE, PRESSURE RELI

VALVE - circuit relief, parts list Figure 8-76

1шт.

28

S616867

VALVE

- circuit relief, parts list Figure 8-77

1шт.

29

S616862

VALVE

- circuit relief, parts list Figure 8-77

1шт.

30

S619049

KIT

VALVE - circuit relief, parts list Figure 8-77

1шт.

S81690

PLUG

ASSEMBLY - relief port

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG - body

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch, outer

1шт.

33

S93829

BACK-UP RING,0.609" ID x 0.052" Width

- backup, inner O-ring

1шт.

34

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

Inner -113, Cl 7, .549" ID x .103" Thk

1шт.
