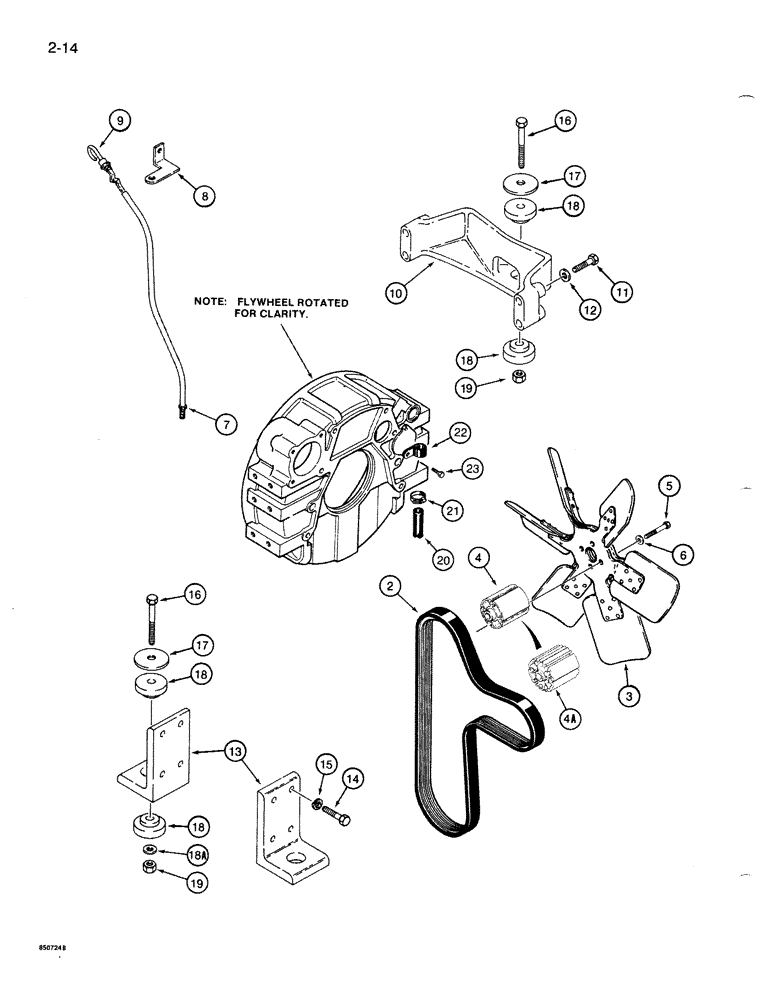

Запчасти Case 1085B (2-014) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

2

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Fan and Alternator 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

3

A171581

FAN

- puller, engine cooling, part number is stamped on blade, 1-31/32 inch center dimension between hub mounting holes

1шт.

3

A173569

FAN

- puller, engine cooling, part number is stamped on blade, 2-3/8 inch center dimension between hub mounting holes, no longer available, order A189123 fan

1шт.

3

A189123

FAN

- puller, engine cooling

1шт.

4

A172592

SPACER

- fan to engine, used with A171581 fan, 1-31/32 inch center dimension between mounting holes

1шт.

4

A173333

SPACER

- fan to engine, used with A173569 fan, 2-3/8 inch center dimension between mounting holes, no longer available, order A184524 spacer

1шт.

4a

A184524

SPACER

- fan to engine, used with A173569 fan or A189123 fan

1шт.

5

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

Used with A171581 and A172592 Hex, M8 x 110, 10.9

1шт.

fan and spacer

4шт.

5

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

- hex, 10 - 1.5 x 110 mm, Used with A173569 and A173333

1шт.

fan and spacer and with A189123 and A184524 fan and spacer

4шт.

6

H426775

WASHER

- flat, special, used with 827-8110 bolt

4шт.

6

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, hardened, used with 827-10110 bolt

4шт.

7

S517126

TUBE

- engine oil dipstick

1шт.

8

S120570

BRACKET

- dipstick tube

1шт.

9

S516507

DIPSTICK

- engine oil level

1шт.

10

A170985

BRACKET

- front engine mounting

1шт.

11

A171690

BOLT

BOLT - hex, 12 - 1.75 x 85 mm, special

4шт.

12

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

13

S240986

ANGLE

BRACKET - rear engine mounting

2шт.

14

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

8шт.

15

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

8шт.

16

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8

3шт.

17

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, 5/8 inch, special, replaces S118895 washer

3шт.

18

R49921

RUBBER MOUNTING

INSULATOR - rubber, engine mount

6шт.

18a

195-41

WASHER,5/8"

Use on LH rear bracket only 5/8"

1шт.

19

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

3шт.

20

S120629

HOSE,0.75" ID x 33.00"

Crankcase Breather, Engine 0.75" ID x 33.00"

1шт.

21

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose to engine

1шт.

22

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- hose, at flywheel cover plate, if used

1шт.

22

R14668

CLAMP

- hose, at flywheel cover plate, if used

1шт.

23

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, cover plate, use to retain clamp, also see Ref. 4, Fig. 2-040

1шт.
