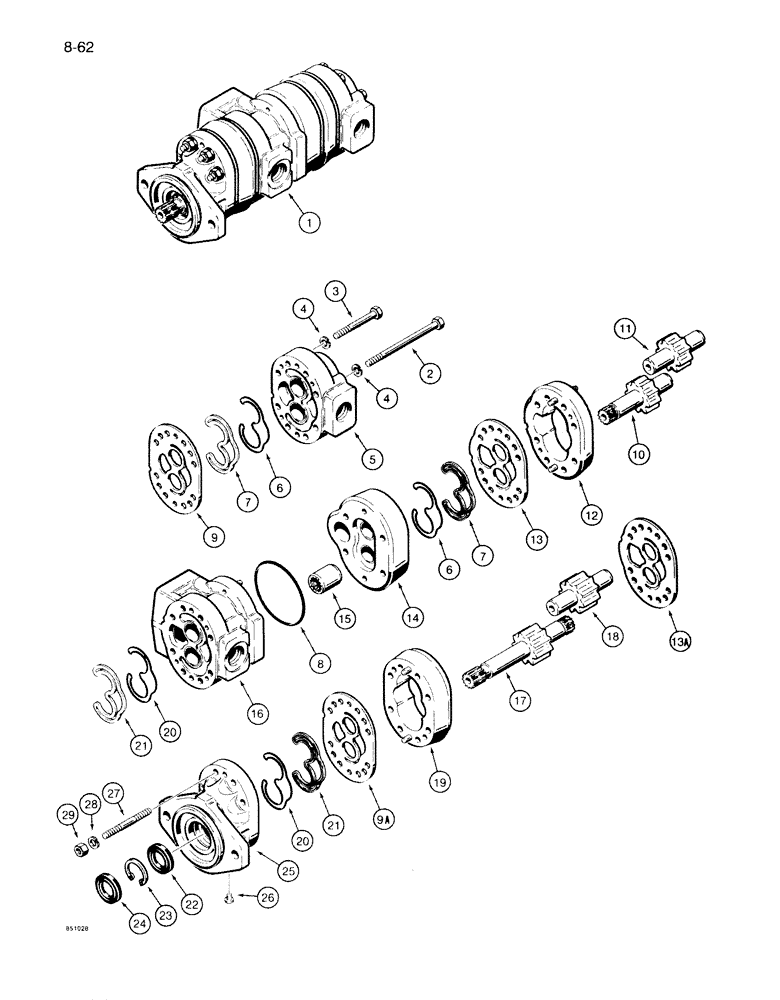

Запчасти Case 1085B (8-062) - S516538 HYDRAULIC PUMP, TANDEM (08) - HYDRAULICS

1

S516538

PUMP

HYDRAULIC PUMP ASSEMBLY - tandem, no longer available, order S517722 pump assembly, parts list Fig. 8-064, Includes: Ref. 2 - 29

1шт.

2

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

3

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

4шт.

4

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

5

N60304

COVER

- port end

1шт.

N7127

SEAL KIT

- seal, closed end, Includes: Ref. 6 - 8

1шт.

6

N60243

SEAL

- pre-load

2шт.

7

N60305

RETAINER

- seal

2шт.

8

N60307

O-RING

-, Serial Range: adapter-housing

1шт.

9

N60292

PLATE

- wear

1шт.

9a

N60191

PLATE

- wear

1шт.

10

N60303

GEAR

- drive, pump, closed end

1шт.

11

N60302

GEAR

- driven, pump, closed end

1шт.

12

N13018

VALVE BLOCK

HOUSING - gear

1шт.

13

N60296

PLATE

- wear

1шт.

13a

N60187

PLATE

- wear

1шт.

14

N60299

TUBE NUT

ADAPTER - housing

1шт.

15

N9195

SPLINED COUPLING

COUPLING - adapter housing

1шт.

16

N13019

VALVE BLOCK

HOUSING - section port

1шт.

17

N13021

GEAR

- drive, pump, shaft end

1шт.

18

N13020

GEAR

- driven, pump, shaft end

1шт.

19

N13022

VALVE BLOCK

HOUSING - gear

1шт.

N7240

SEAL KIT

- seal, drive shaft end, Includes: Ref. 20 - 24

1шт.

20

N60195

SEAL

- pre-load

2шт.

21

N60194

RETAINER

- seal

2шт.

22

N60213

SEAL

- shaft, inner

1шт.

23

D41419

RING

- snap, seal retaining

1шт.

24

N60212

SEAL

SEAL - shaft, outer

1шт.

25

N13023

COVER

- drive shaft end

1шт.

26

N60210

PLUG

- cover

1шт.

27

N13024

STUD

- cover

8шт.

28

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

29

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC

8шт.
