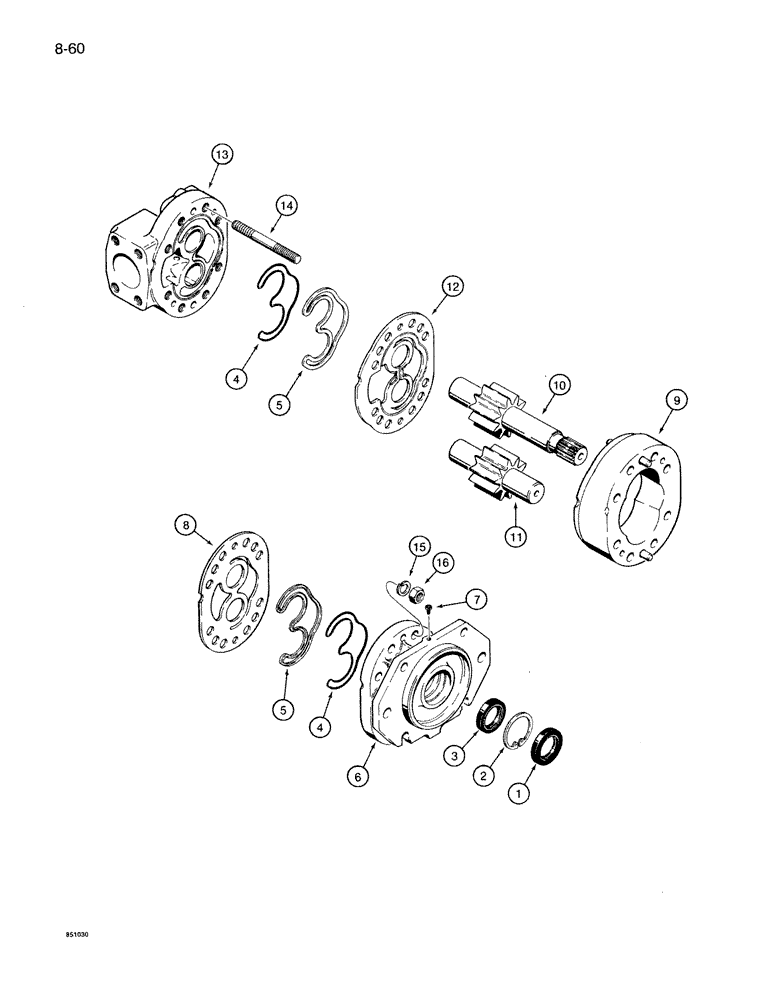

Запчасти Case 1085B (8-060) - S517721 HYDRAULIC PUMP, SINGLE (08) - HYDRAULICS

S517721

PUMP

ASSEMBLY - single, Includes: Ref. 1 - 16

1шт.

1

N60212

SEAL

SEAL - shaft, outer

1шт.

2

D28436

SNAP RING,2", Int, #200

Ring, Snap, , seal 2", Int, #200

1шт.

3

N60213

SEAL

- shaft, inner

1шт.

4

N60195

SEAL

- pre-load

2шт.

5

N60194

RETAINER

- seal

2шт.

6

100068A1

COVER

- drive shaft end

1шт.

7

N60210

PLUG

- cover

1шт.

8

N60187

PLATE

- wear, shaft end cover

1шт.

9

N13022

VALVE BLOCK

HOUSING - gear

1шт.

10

N13025

GEAR

- drive, pump

1шт.

11

N13020

GEAR

- driven, pump

1шт.

12

N60191

PLATE

- wear, port end cover

1шт.

13

S300366

COVER

- port end

1шт.

14

N13024

STUD

- pump tie

8шт.

15

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

16

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC

8шт.
