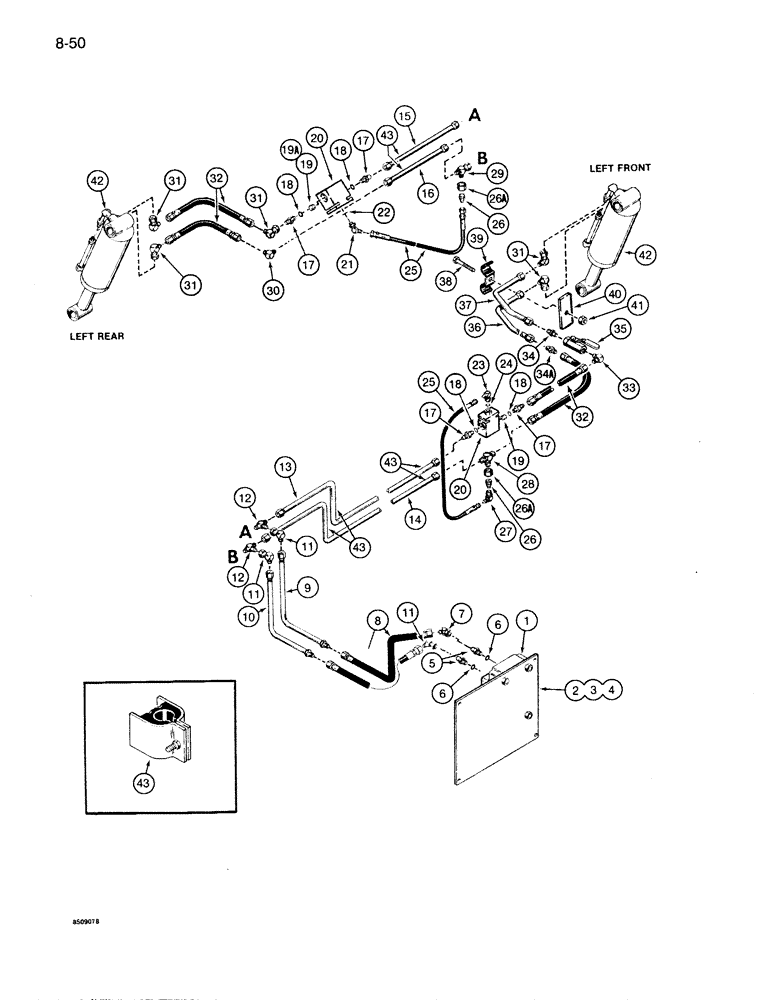

Запчасти Case 1085B (8-050) - OUTRIGGER HYDRAULIC CIRCUIT, FRONT AND REAR - LEFT SIDE OPTIONAL FOR 1085B - STANDARD FOR1086B (08) - HYDRAULICS

1

S514898

VALVE

ASSEMBLY - outrigger control, two spool, parts list Fig. 8-74

1шт.

2

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

195-530

WASHER,7/16"

- flat, 1/2 x 1-1/8 x 5/64 inch

3шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Incl. Ref. 6

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

7

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 deg, 1-1/16-12 inch flare x swivel str thread

1шт.

8

S76155

HOSE

- 28 inch (711 mm) long

2шт.

9

S238810

TUBE ASSY.,0.75" OD x 11, 14.25" L

TUBE - valve to tee, closed end of cylinders

1шт.

10

S238809

TUBE ASSY.,0.75" OD x 12.25, 12" L

TUBE - valve to tee, rod end of cylinders

1шт.

11

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel flare

3шт.

12

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare

2шт.

13

S241409

TUBE ASSY.,0.75" OD x 54.25, 9.12" L

TUBE - tee to front cylinder, closed end

1шт.

14

S238816

TUBE,0.75" OD x 55.75, 9.88" L

- tee to front cylinder, rod end

1шт.

15

S207935

TUBE ASSY.,0.75" OD x 12.5" L

TUBE - tee to rear cylinder, closed end

1шт.

16

S206864

TUBE ASSY.,0.75" OD x 13.5" L

TUBE - tee to rear cylinder, rod end

1шт.

17

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch O-ring, Includes: Ref. 18

4шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

S80125

REGULATOR

RESTRICTOR - flow, no longer used, order Ref. 19A

2шт.

19a

S117594

PLUG

RESTRICTOR - flow

2шт.

20

S516726

VALVE, CHECK

VALVE ASSEMBLY - check, outrigger, parts list Fig. 8-082

2шт.

21

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 22

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 24

1шт.

25

S77121

HOSE

- 20 inch (508 mm) long, check, Serial Range: valve-tee

2шт.

26

218-795

REDUCER,37 Degree, 3/4" x 3/8" Tube

ADAPTER - reducing, 3/4 tube OD x 9/16-18 inch flare, hose to tee

2шт.

26a

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - hex, 1-1/16 inch NF, reducer to tee

2шт.

27

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

1шт.

28

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare, to front cylinder

1шт.

29

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj straight thread, to rear cylinder 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

30

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

- 90 degree, 1-1/16-12 inch flare, to rear cylinder

1шт.

31

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel flare

5шт.

32

S76155

HOSE

- 28 inch (711 mm) long, to front and rear cylinders

4шт.

33

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 1-1/16-12 flare x 3/4 inch PT, at shutoff valve

1шт.

34

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 flare x 3/4 inch PT, at shutoff valve

1шт.

34a

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.

35

S512882

VALVE

ASSEMBLY - shutoff, parts list Fig. 8-084

1шт.

36

S221247

TUBE,0.75" OD

- to front cylinder, rod end

1шт.

37

S221246

TUBE,0.75" OD

- to front cylinder, closed end

1шт.

38

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

39

S45067

CLAMP

- tube, at cylinder

1шт.

40

S64758

SPACER

PLATE - tube clamp

1шт.

41

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

42

G105017

CYLINDER

ASSEMBLY - outrigger, parts list Fig. 8-100

2шт.

43

S97491

CLAMP

- tube

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
