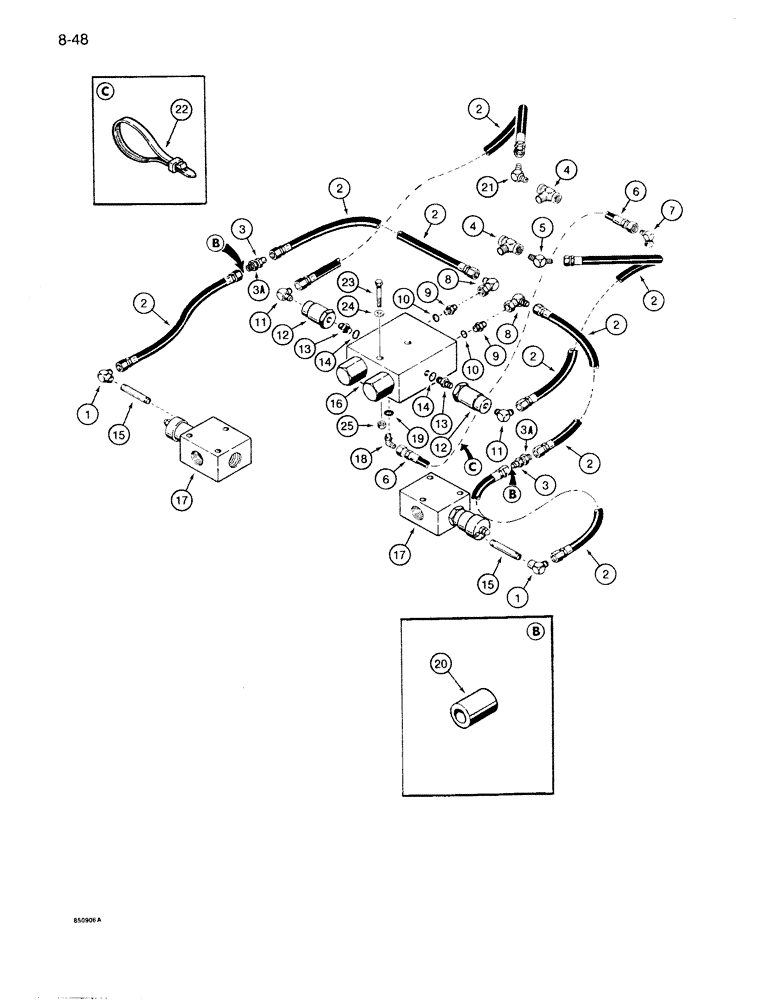

Запчасти Case 1085B (8-048) - POWER SENSING HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-525

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/8"-27, Fem NPTF

- 90 degree, 9/16-18 flare x 1/8 inch female PT

2шт.

2

S77121

HOSE

- hydraulic, 1/4 ID x 20 inch (6 mm x 508 mm) long

6шт.

3

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

3a

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, self-locking, bulkhead, 9/16 inch NF

2шт.

4

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- 1/4 inch PT branch x female PT x female PT

2шт.

5

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

6

S8584

HOSE ASSY.,12.70 mm ID x 939.80, SAE 100R2

HOSE ASSY, 12.70 mm ID x 939.80 mm, SAE 100R2A, Hydraulic

1шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Connects to hydraulic reservoir, See Fig. 8-010 Ref. 4 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 10

2шт.

11

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

2шт.

12

S98004

FILTER

- power sensing valve

2шт.

13

218-5443

FITTING

ADAPTER - straight, 9/16-18 O-ring boss x 1/4 inch PT, Includes: Ref. 14

2шт.

15

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - straight, 1/8 PT x 2 inch, extra strong

2шт.

16

S514899

VALVE

- power sensing, parts list Fig. 8-080

1шт.

17

S241998

VALVE, PRESSURE RELI

RELIEF VALVE - main, parts list Fig. 8-078

2шт.

18

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

S89669

VALVE

RESTRICTOR - flow

2шт.

21

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

24

195-2251

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 1/8 inch

2шт.

25

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
