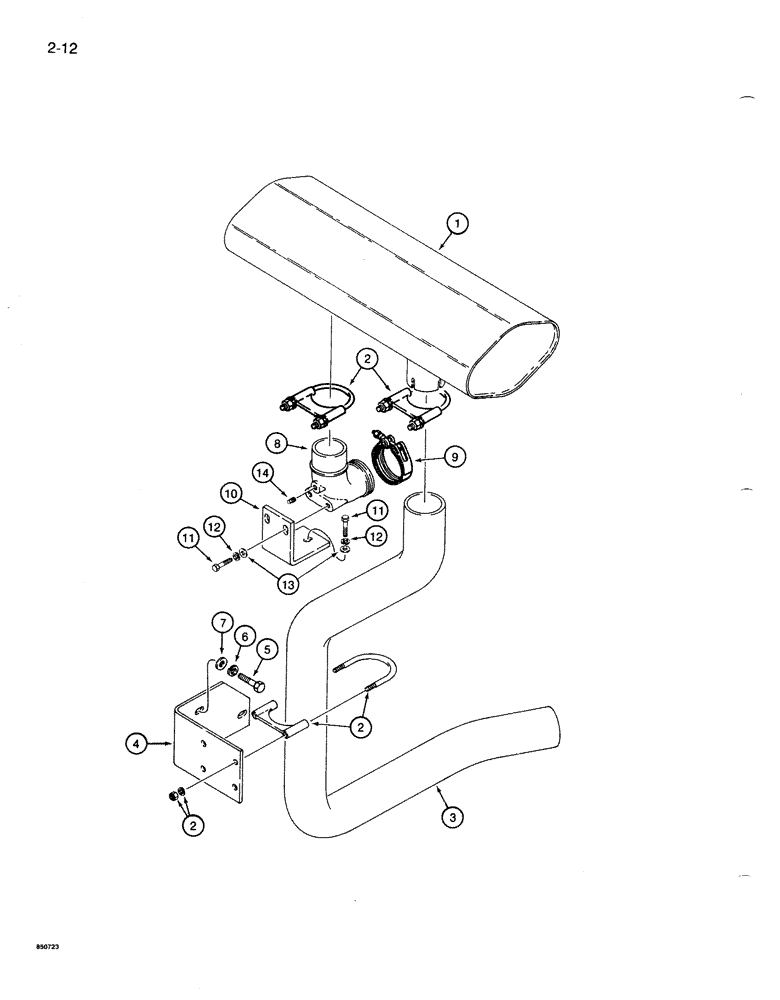

Запчасти Case 1085B (2-012) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A189499

MUFFLER

- engine exhaust, replaces A171068 muffler

1шт.

2

L73711

CLAMP

- exhaust pipe to muffler and bracket, includes lockwashers and nuts

4шт.

3

S516127

TUBE,3" OD

PIPE - engine exhaust

1шт.

4

S515873

BRACKET

- mounting, exhaust pipe

1шт.

5

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 30 mm

3шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

3шт.

8

A173623

ELBOW

-, Serial Range: turbocharger-muffler

1шт.

9

A170467

CLAMP,72mm ID

-, Serial Range: turbocharger-elbow

1шт.

10

A172484

BRACKET

- mounting, elbow

1шт.

11

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 1/8 inch, hardened

4шт.

14

221-662

PLUG,Hex Hd, 1/4"-18

- hex, 1/4 inch PT

1шт.
