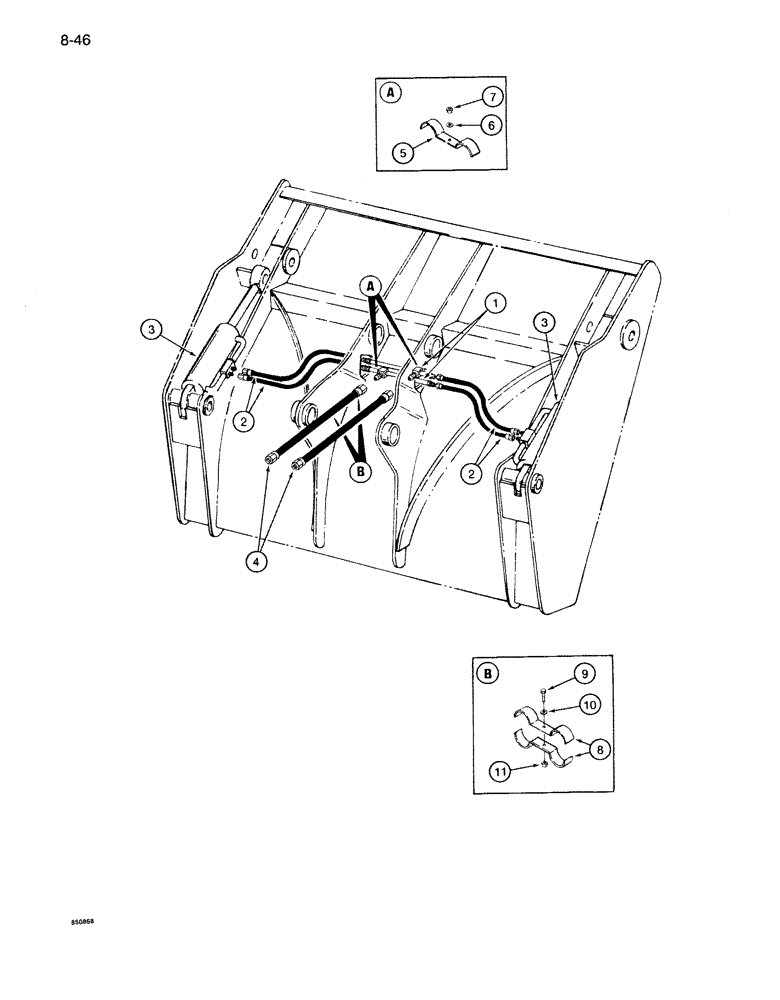

Запчасти Case 1085B (8-046) - 4-IN-1 BUCKET CIRCUIT (08) - HYDRAULICS

1

S207722

TUBE ASSY.,11.5" L

TUBE - to cylinders

2шт.

2

S11226

HOSE

- 20 inch (508 mm) long

4шт.

3

S31431

CYLINDER

ASSEMBLY - 4-in-1, parts list Fig. 8-106

2шт.

4

S11237

HOSE

- 28 inch (711 mm) long

2шт.

5

D38835

CLAMP

- tube

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

S76712

CLAMP

- hose

4шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.
