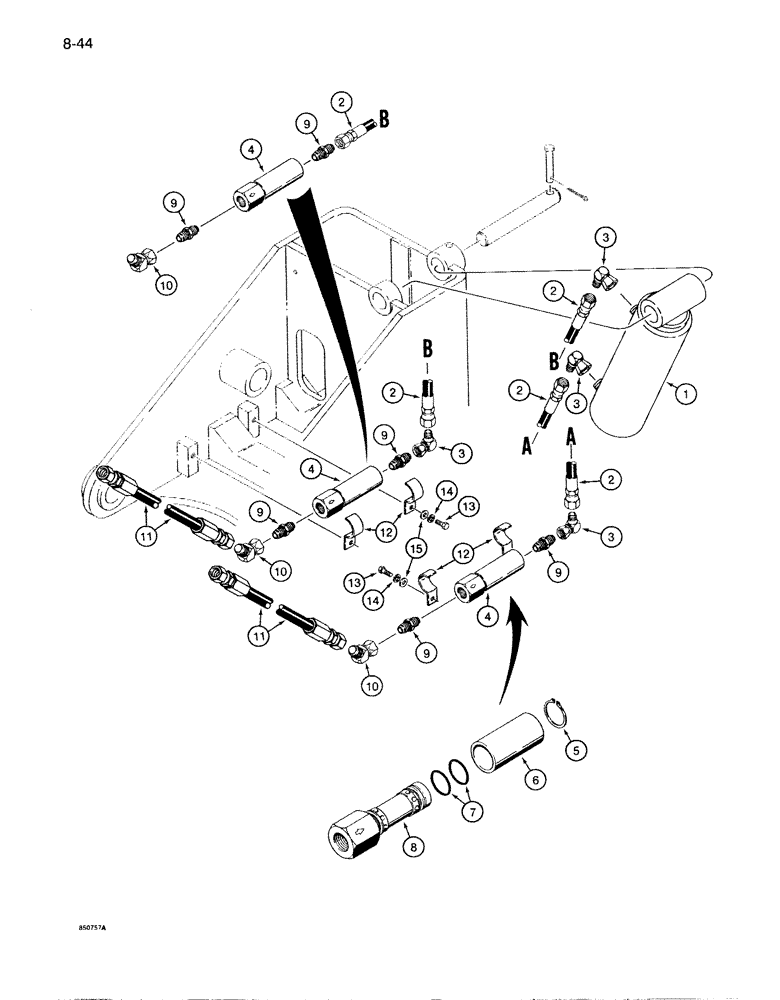

Запчасти Case 1085B (8-044) - WRIST-O-TWIST CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - Wrist-O-Twist, see Figures 8-102 and 8-104 for correct cylinder and component parts

1шт.

2

S120676

HOSE ASSY.

HOSE - 20 inch (508 mm) long

2шт.

3

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare, elbow at hose from flow control valve to base end of cylinder, not required on all units (see illustration)

3-4шт.

4

T54632

VALVE

ASSEMBLY - flow control, Includes: Ref. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

SNAP RING - outer

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - outer

1шт.

7

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- cartridge

2шт.

8

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY - inner

1шт.

9

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

4шт.

10

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread

2шт.

11

S120677

HOSE ASSY.

HOSE - 26 inch (660 mm) long

2шт.

12

L32065

CLAMP

- tube

4шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.
