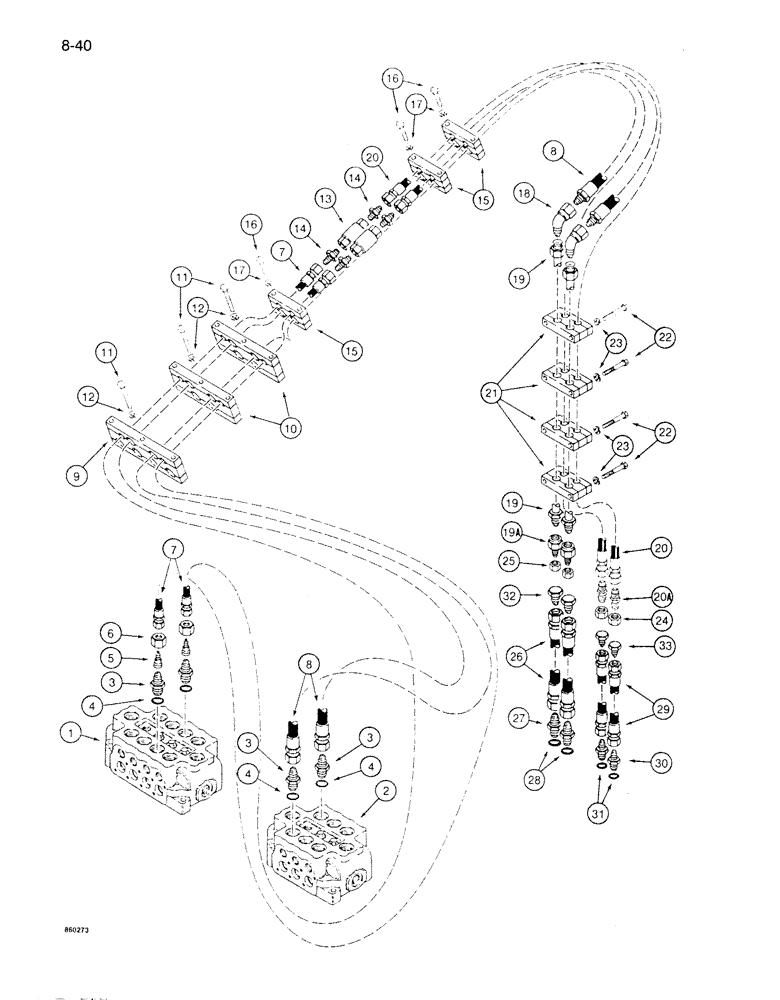

Запчасти Case 1085B (8-040) - GRAPPLE ATTACHMENT CIRCUIT, USED WITH LOGGER BOOM (08) - HYDRAULICS

1

S516927

VALVE

ASSEMBLY - outside, 4 spool, parts list Figure 8-72

1шт.

2

S517086

VALVE

ASSEMBLY - inside, 3 spool, parts list Figure 8-68

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Incl. Ref. 4

4шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

5

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducing, 3/4 tube OD x 3/4-16 inch flare

2шт.

6

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - hex, 1-1/16 inch NF, tube reducer

2шт.

7

S75758

HOSE

- 246 inch (6248 mm) long, valve to grapple motor, at valve and boom

2шт.

8

S75824

HOSE ASSY.

HOSE - 336 inch (8534 mm) long, valve to grapple cylinders, at valve and boom

2шт.

9

S242746

CLAMP

- hoses to boom, lower

1шт.

10

S242747

CLAMP

- hoses to boom, center

2шт.

11

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

9шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

13

S513782

VALVE, CONTROL

VALVE - flow control, grapple motor

2шт.

14

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT, flow control valve to hose

4шт.

15

S242836

CLAMP

- hoses to boom, upper

3шт.

16

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

6шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

18

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 deg, 1-1/16-12 inch flare x swivel str thread

2шт.

19

S242827

TUBE ASSY.,1" OD x 126" L

TUBE - to grapple cylinders, at arm

2шт.

19a

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

ADAPTER - reducing, 1-1/16-12 str thread x 7/8-14 inch flare

2шт.

20

S75758

HOSE

- 246 inch (6248 mm) long, to grapple motor, at arm

2шт.

20a

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

2шт.

21

S242835

CLAMP

- hoses and tubes, at arm

4шт.

22

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

8шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

24

218-755

CAP,37 Degree, 3/4"-16

Hose end, Grapple motor 37º, 3/4"-16

2шт.

25

218-756

CAP,37 Degree, 7/8"-14

Tube end, Grapple cylinders 37º, 7/8"-14

2шт.

26

S8581

HOSE ASSY.

HOSE - 48 inch (1219 mm) long, to grapple cylinders, at grapple

2шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

S11229

HOSE ASSY.

HOSE - 49 inch (1245 mm) long, to grapple motor, at grapple

2шт.

30

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 31

2шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

218-776

PLUG,7/8"-14, 37 Degree

- hex, 7/8-14 inch flare, grapple cylinder hoses

2шт.

33

218-775

PLUG,3/4"-16, 37 Degree

- hex, 3/4-16 inch flare, Grapple motor hoses

2шт.
