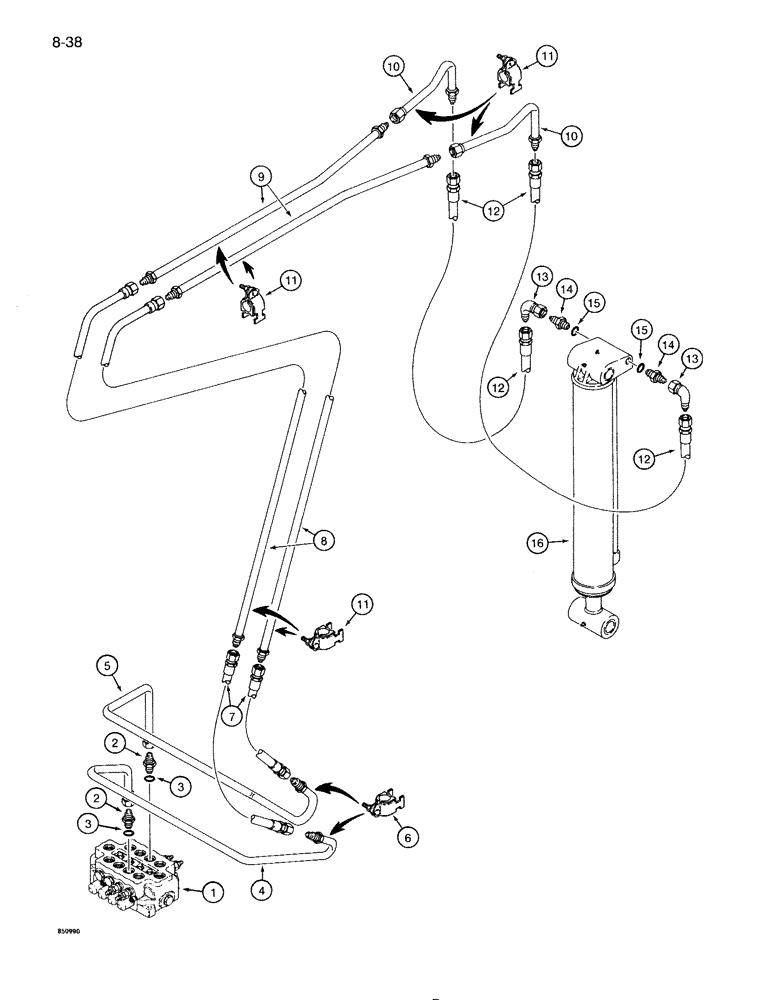

Запчасти Case 1085B (8-038) - TOOL CYLINDER CIRCUIT, USED ON UNITS WITH Y BOOM (08) - HYDRAULICS

1

S516923

VALVE

ASSEMBLY - control, 4 spool, parts list Fig. 8-070

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S516629

TUBE ASSY.,1.25" OD

TUBE - to tool cylinder, rod end

1шт.

5

S516630

TUBE ASSY.,1.25" OD

TUBE - to tool cylinder, closed end

1шт.

6

S93266

CLAMP

- tube

2шт.

7

S8628

HOSE

- 36 inch (914 mm) long, to tool cylinder

2шт.

8

S515193

TUBE ASSY.,1.25" OD x 48.08, 71.75" L

TUBE - arm cylinder, lower, at boom

2шт.

9

S502566

TUBE,1.25" OD x 58, 3.26" L

- arm cylinder, upper, at boom

2шт.

10

S211907

TUBE ASSY.,1.25" OD x 20, 5.75" L

TUBE - arm cylinder, at cylinder

2шт.

11

S93266

CLAMP

- tube

6шт.

12

S8628

HOSE

- 36 inch (914 mm) long, to tool cylinder

2шт.

13

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

16

G109007

CYLINDER

ASSEMBLY - tool, parts list Fig. 8-098

1шт.
