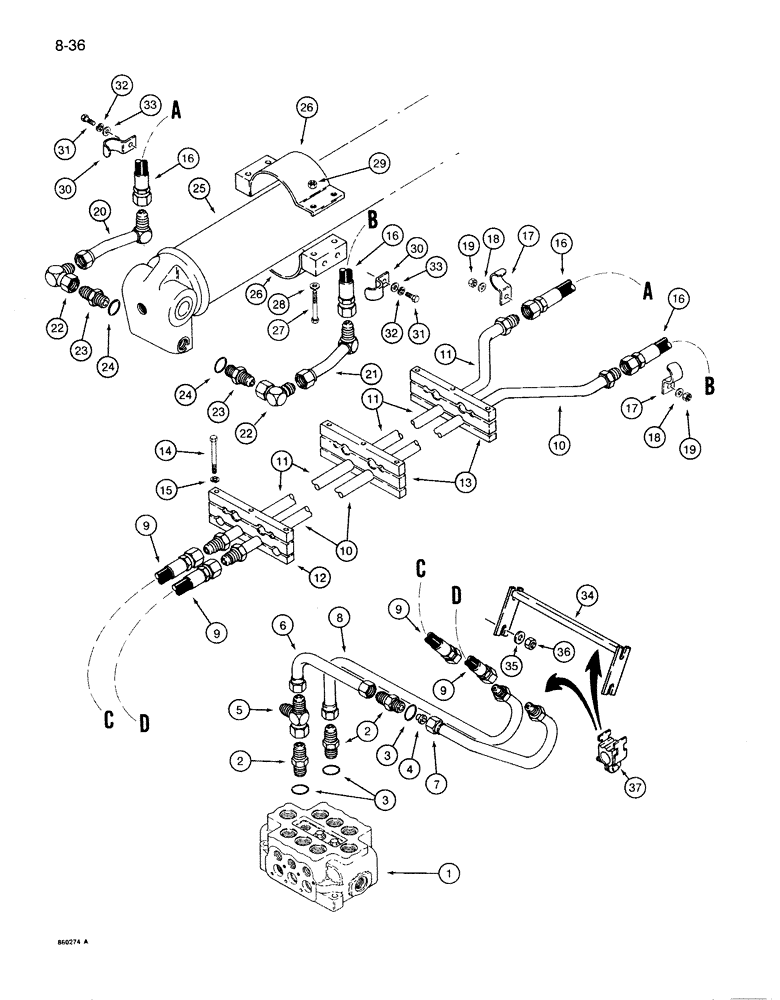

Запчасти Case 1085B (8-036) - ARM CYLINDER CIRCUIT, USED WITH LOGGER BOOM (08) - HYDRAULICS

1

S517086

VALVE

ASSEMBLY - inside, 3 spool, parts list Fig. 8-068

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

3шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S79252

REGULATOR

RESTRICTOR - arm cylinder, rod end

1шт.

5

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16-12 inch fl branch x flare x adj straight thread, for fast crowd, see Fig. 8-032 for continuation of circuit

1шт.

6

S517031

TUBE ASSY.,1.25" OD x 16, 3.8" L

TUBE - arm cylinder, rod end, at valve

1шт.

7

S517003

TUBE ASSY.,31.75 mm OD

TUBE - arm cylinder, rod end, at valve

1шт.

8

S517000

TUBE ASSY.,31.75 mm OD

TUBE - arm cylinder, closed end, at valve

1шт.

9

S8628

HOSE

- 36 inch (914 mm) long, to arm cylinder, at boom

2шт.

10

S618925

TUBE ASSY.,31.75 mm OD

TUBE - arm cylinder, rod end, at boom

1шт.

11

S618926

TUBE ASSY.,31.75 mm OD

TUBE - arm cylinder, closed end, at boom

1шт.

12

S242746

CLAMP

- tube, lower boom

1шт.

13

S242747

CLAMP

- tube, upper boom

2шт.

14

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

9шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

16

S8628

HOSE

- 36 inch (914 mm) long, to arm cylinder, at cylinder

2шт.

17

S87573

CLAMP

- hose, at boom side

2шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

19

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

20

S242738

TUBE ASSY.,31.75 mm OD x 210, 22 mm L

TUBE - arm cylinder, closed end, at cylinder

1шт.

21

S242737

TUBE ASSY.,31.75 mm OD x 210, 22 mm L

TUBE - arm cylinder, rod end, at cylinder

1шт.

22

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 24

2шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

25

S956920

CYLINDER

ASSEMBLY - logger arm, parts list Fig. 8-096

1шт.

26

S242743

CLAMP

- tube, at arm cylinder

2шт.

27

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

29

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

30

S87573

CLAMP

- hose to arm cylinder

2шт.

31

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

34

S231754

BRACKET

- mounting, tube clamps at turntable

1шт.

35

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

36

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

37

S93266

CLAMP

- tube, at turntable

2шт.
