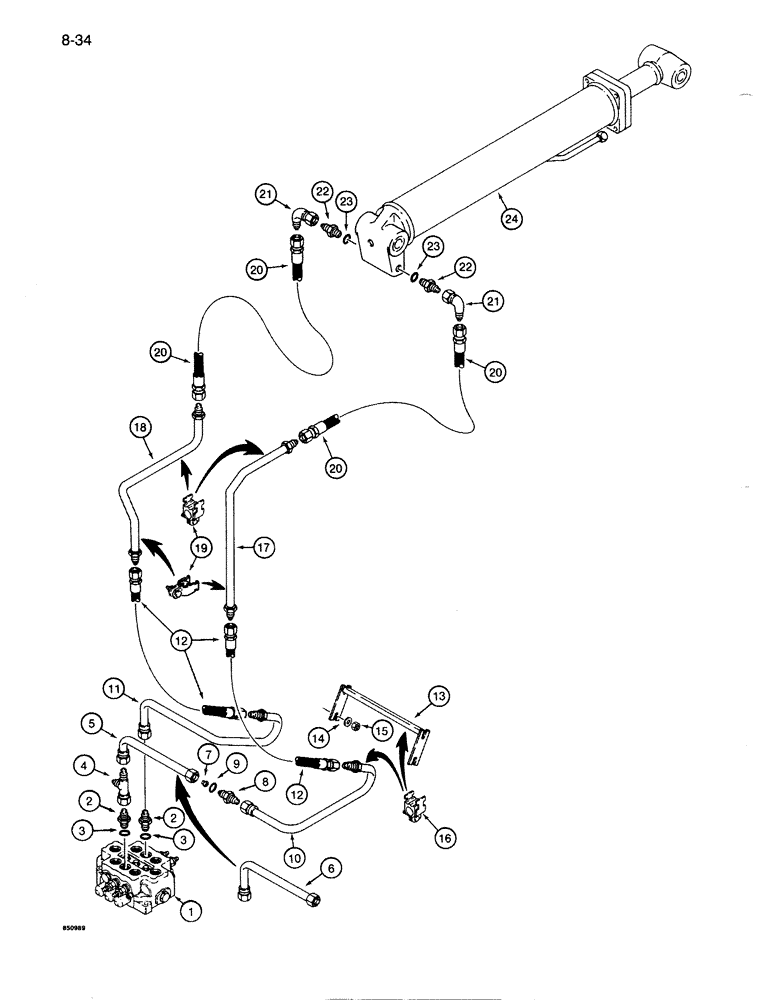

Запчасти Case 1085B (8-034) - ARM CYLINDER CIRCUIT, USED ON UNITS WITH Y BOOM (08) - HYDRAULICS

1

S516805

VALVE

ASSEMBLY - control, 3 spool, parts list Fig. 8-066

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16-12 inch fl branch x flare x adj straight thread, used on units with fast crowd, see Fig. 8-032 for continuation of circuit

1шт.

5

S516627

TUBE ASSY.,1.25" OD x 16, 4.27" L

TUBE - tee to arm cylinder, rod end, units with fast crowd

1шт.

6

S516888

TUBE ASSY.,1.25" OD x 16, 7.3" L

TUBE - valve to arm cylinder, rod end, units without fast crowd

1шт.

7

S79252

REGULATOR

RESTRICTOR - flow control, rod end of cylinder

1шт.

8

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

10

S242242

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, rod end

1шт.

11

S516628

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, closed end

1шт.

12

S8628

HOSE

- to arm cylinder, 36 inch (914 mm) long

2шт.

13

S231754

BRACKET

- mounting, tube clamp

1шт.

14

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

15

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

16

S93266

CLAMP

- tube

2шт.

17

S502409

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, rod end

1шт.

18

S506420

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, closed end

1шт.

19

S93266

CLAMP

- tube

4шт.

20

S8628

HOSE

- to arm cylinder, 36 inch (914 mm) long

2шт.

21

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

22

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 23

2шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

24

S956911

CYLINDER

ASSEMBLY - arm, parts list Fig. 8-094

1шт.
