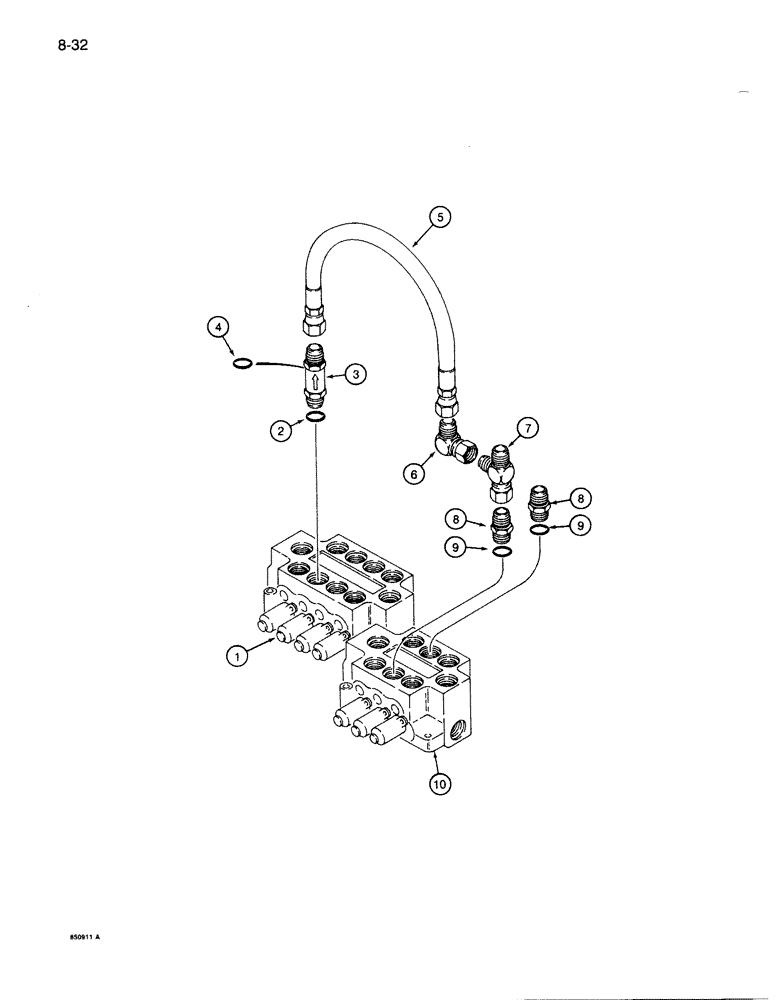

Запчасти Case 1085B (8-032) - FAST CROWD CIRCUIT (08) - HYDRAULICS

1

S516923

VALVE

ASSEMBLY - excavator, 4 spool, parts list Fig. 8-070

1шт.

1

S516927

VALVE

ASSEMBLY - logger, 4 spool, parts list Fig. 8-072

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

3

S93154

VALVE

- check, at 4 spool valve, Includes: Ref. 4

1шт.

4

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- valve body to valve fitting

1шт.

5

S235936

HOSE

- 49 inch (1245 mm) long, check, Serial Range: valve-elbow

1шт.

6

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

1шт.

7

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16-12 inch fl branch x flare x adj straight thread, see Figures 8-35 and 8-37 for related hydraulics for arm cylinder

1шт.

8

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 9

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

10

S516805

VALVE

ASSEMBLY - excavator, 3 spool, parts list Fig. 8-066

1шт.

10

S517086

VALVE

ASSEMBLY - logger, 3 spool, parts list Fig. 8-068

1шт.
