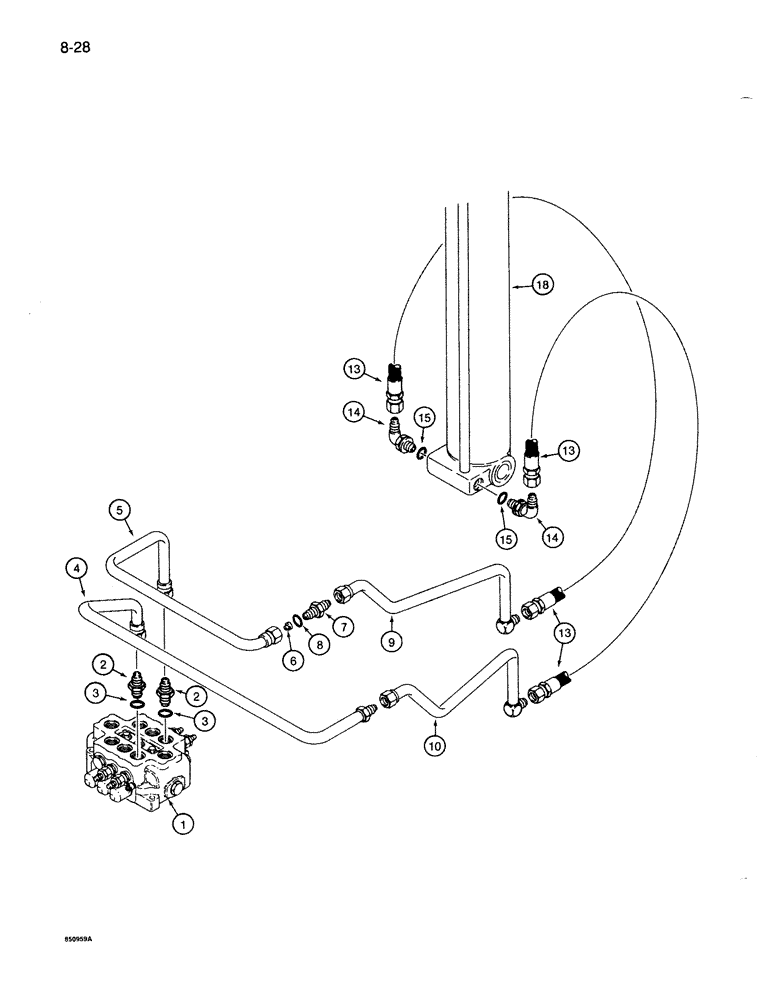

Запчасти Case 1085B (8-028) - BOOM CYLINDER CIRCUIT, USED ON UNITS WITH Y BOOM (08) - HYDRAULICS

1

S516923

VALVE

ASSEMBLY - control, 4 spool, parts list Fig. 8-070

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S242237

TUBE ASSY.,1.25" OD

TUBE - to boom cylinder, rod end, at valve

1шт.

5

S242238

TUBE ASSY.,1.25" OD

TUBE - to boom cylinder, closed end , at valve

1шт.

6

S79252

REGULATOR

RESTRICTOR - boom cylinder, closed end

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

9

S242286

TUBE ASSY.,1.25" OD

TUBE - to boom cylinder, closed end

1шт.

10

S242285

TUBE ASSY.,1.25" OD

TUBE - to boom cylinder, rod end

1шт.

13

S8628

HOSE

- 36 inch (914 mm) long, at boom cylinder

2шт.

14

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

18

S956911

CYLINDER

ASSEMBLY - hydraulic, boom, parts list Fig. 8-094

1шт.
