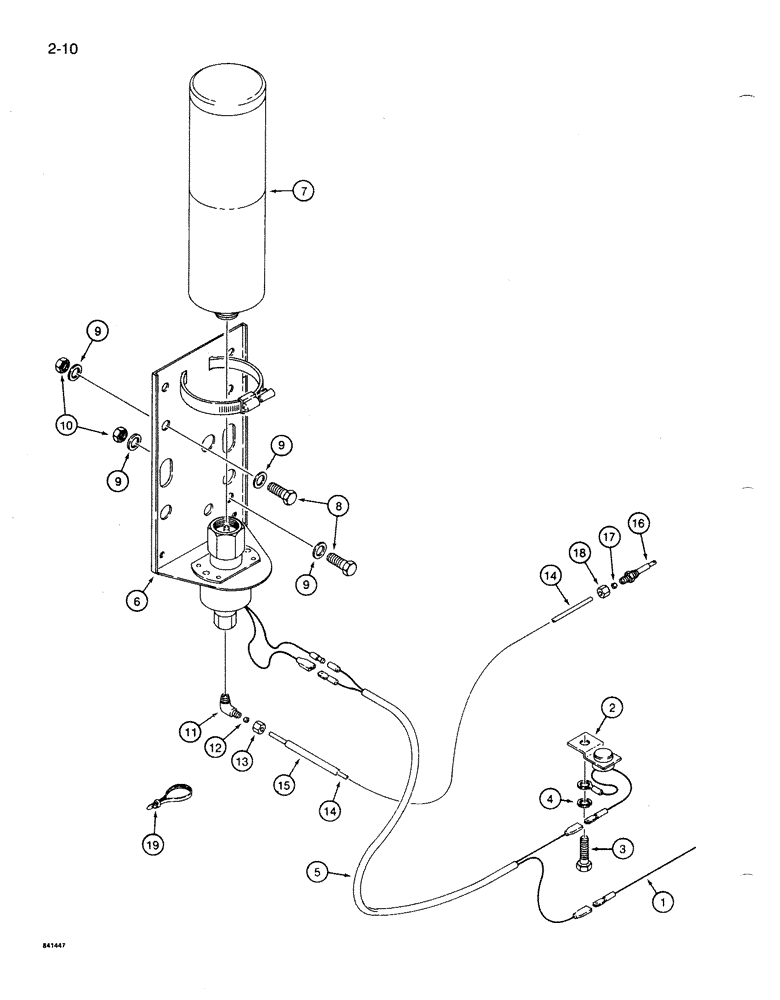

Запчасти Case 1085B (2-010) - COLD WEATHER STARTING SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

HARNESS - engine, see Figure 4-14, items 1 and 1A for correct harness

1шт.

2

A171943

IGNITION SWITCH

THERMOSTAT - circuit breaking, includes lead wires

1шт.

3

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

1шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

5

S242606

HARNESS

WIRE -, Serial Range: thermostat-valve

1шт.

6

A172516

VALVE

ASSEMBLY - component parts not serviced separately

1шт.

7

A171940

CYLINDER

- starting fluid

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

10

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Valve outlet, Incl. Ref 11 - 13 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

14

A172361

TUBE

- nylon, 1/8 (3 mm) x 72 inch (1829 mm) long

1шт.

15

S119923

LOOM - tube protection, 70 inch (1778 mm) long, cut from S118377 bulk roll, see below

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

17

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

18

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118377

LOOM

- bulk roll, 240 inch (6096 mm) long

1шт.
