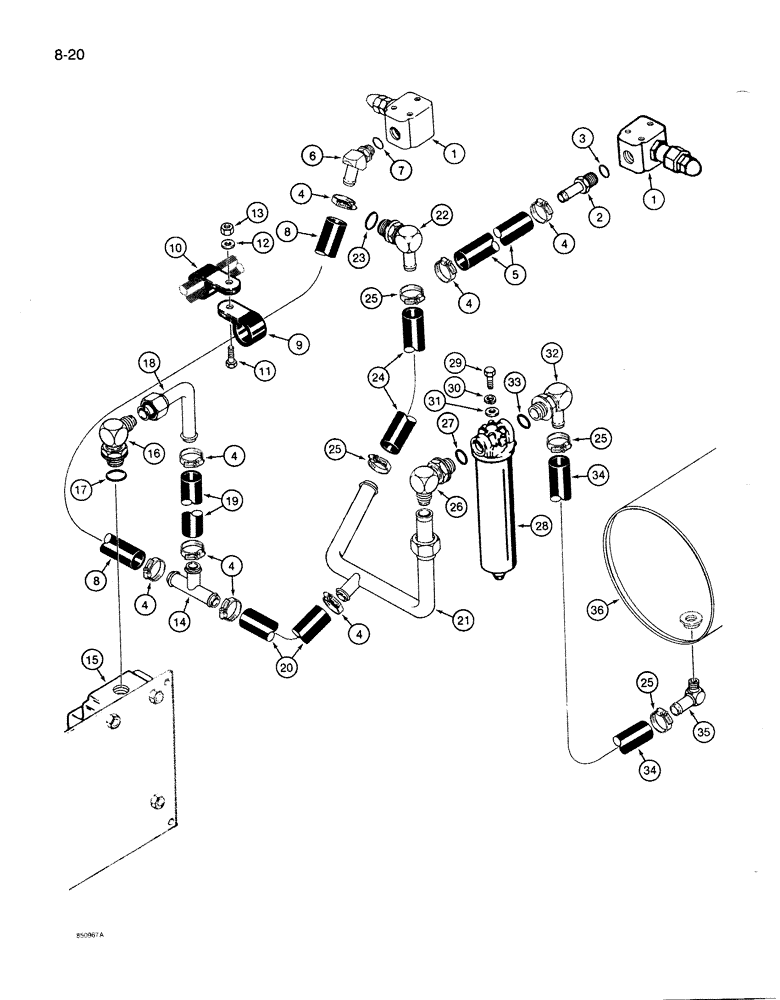

Запчасти Case 1085B (8-020) - HYDRAULIC RETURN CIRCUIT, MAIN RELIEF VALVES TO RESERVOIR (08) - HYDRAULICS

1

S241998

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, hydraulic, parts list Fig. 8-078

2шт.

2

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

- stem, str, 1-1/4 hose ID x 1-5/8-12 inch O-ring, Incl. Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

4

214-371

CLAMP,1.56"-1.81", T-Bolt

- adj, 1-9/16 - 1-13/16 inch dia

8шт.

5

A139690

HYDRAULIC HOSE,1.25" ID x 12.50", SAE 100R3

HOSE - Return, To oil cooler, Cut to length From S118465 Bulk Hose, See Below 1.25" ID x 12.50", SAE 100R3

1шт.

6

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Adj., Incl. Ref. 7 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

8

S119472

HOSE

- Return, at tee, 30 inch (762 mm) long, Cut to length from S118465 bulk hose, Cee below

1шт.

9

S98801

CLAMP

- at return hose

1шт.

10

S86530

CLAMP

- at pressure hose

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

14

S239394

TUBE

- tee, return hoses

1шт.

15

S514898

VALVE

ASSEMBLY - outrigger control, parts list Fig. 8-074

1шт.

16

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-5/8-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

18

S238090

TUBE ASSY.

TUBE - return, outrigger valve

1шт.

19

D54149

HOSE ASSY.

HOSE - outrigger valve return, 11 inch (279 mm) long, cut to length from S118465 bulk hose, see below

1шт.

21

S238750

TUBE

- manifold, Serial Range: return-filter

1шт.

22

217-359

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

ELBOW - 90 deg, 1-1/2 stem end x 1-7/8-12 inch adj O-ring, hose to swivel port number 8, Includes: Ref. 23

1шт.

23

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

24

S120508

HYDRAULIC HOSE,1.50" ID x 15.00"

- Swivel return, Cut to length from S120500 bulk hose, See below 1.50" ID x 15.00"

1шт.

25

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- adj, 1-13/16 - 2-1/16 inch dia

4шт.

26

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, 1-7/8-12 inch flare x adj O-ring boss, Includes: Ref. 27

1шт.

27

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

28

S616065

FILTER ASSEMBLY - hydraulic oil, parts list Fig. 8-056

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

32

217-359

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

ELBOW - 90 deg, 1-1/2 stem end x 1-7/8-12 inch adj O-ring, Includes: Ref. 33

1шт.

33

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

34

S120515

HYDRAULIC HOSE,1.50" ID x 25.00"

- Return to tank, Cut to length from S120500 bulk hose, See below 1.50" ID x 25.00"

1шт.

35

217-138

ELBOW - 90 degree, 1-1/2 inch stem end x PT

1шт.

36

S514521

TANK

RESERVOIR - hydraulic oil, see Fig. 8-010 for mounting parts

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Hydraulic, Bulk roll 1.25" ID x 180.00", SAE 100R3

1шт.

S120500

HOSE,1.50" ID x 60.00"

- Hydraulic, Bulk roll 1.50" ID x 60.00"

1шт.
