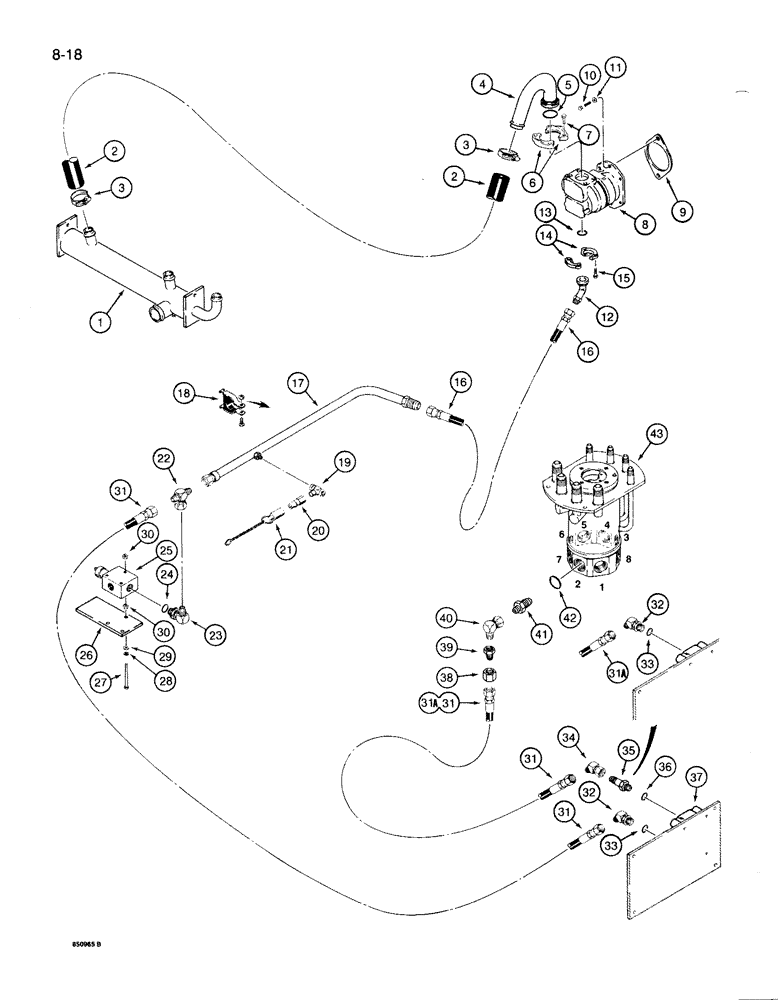

Запчасти Case 1085B (8-018) - SINGLE GEAR HYDRAULIC PUMP, SUCTION AND PRESSURE CIRCUIT (08) - HYDRAULICS

1

S618565

MANIFOLD

- reservoir to pump, see Fig. 8-014 for mounting parts and, Serial Range: circuit-reservoir

1шт.

2

S120582

HYDRAULIC HOSE,2.00" ID x 10.00"

- Suction - Cut to required length from S120587 bulk hose, See below 2.00" ID x 10.00"

1шт.

3

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- adj, 2-5/16 - 2-5/8 inch dia

2шт.

4

S241298

TUBE ASSY.,2" OD x 6.92, 4" L

TUBE - suction, at pump

1шт.

5

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- suction tube

1шт.

6

A14141

FLANGE

CLAMP - split flange

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, single gear, see Fig. 8-058 and 8-060 for correct pump

1шт.

9

S213792

GASKET

- pump mounting

1шт.

10

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

11

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 41/64 x 1-3/64 x 1/8, hardened

2шт.

12

S235919

ADAPTER

TUBE - pressure, at pump

1шт.

13

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- pressure tube

1шт.

14

A12301

CLAMP,Half

CLAMP - split flange

2шт.

15

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

16

S401536

HOSE

- 30 inch (762 mm) long, pump to relief valve

1шт.

17

S242353

TUBE ASSY.,1.25" OD x 37.2, 7.6" L

TUBE - pump to relief valve

1шт.

18

S93266

CLAMP

- tube

1шт.

19

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- 1/4 inch PT branch x female PT x female PT

1шт.

20

S206607

DISC

COUPLING - quick disconnect, male, test

1шт.

21

S206608

CAP

- dust, with chain

1шт.

22

218-838

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

- 1-5/16-12 inch swiv str thread branch x flare x flare, Includes: Ref. 23

1шт.

23

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

25

S241998

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, pressure line, parts list Fig. 8-078

1шт.

26

S514895

PLATE

- mounting, relief valve

1шт.

27

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

3шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

29

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

3шт.

30

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

3шт.

31

S8628

HOSE

- 36 inch (914 mm) long, valve to swivel port number 2, if used

1-2шт.

31a

S120471

HOSE ASSY.

HOSE - 42 inch (1067 mm) long, valve to swivel port number 2, if used

1шт.

32

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 33

1-2шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

34

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 deg, 1-5/16-12 inch flare x swivel str thread, used with 36 inch long hose only

1шт.

35

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16-12 inch flare x O-ring boss, Includes: Ref. 36

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

37

S514898

VALVE

ASSEMBLY - outrigger control, parts list Fig. 8-074

1шт.

38

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - hex, 1-5/8 inch NF

1шт.

39

218-788

REDUCER,37º, 1 1/4" x 1" Tube

ADAPTER - reducing, 1-1/14 tube OD x 1-5/16-12 inch flare

1шт.

40

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree, 1-5/8-12 inch flare x swivel flare

1шт.

41

218-5041

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-7/8-12 inch O-ring, to swivel port number 2, Includes: Ref. 42

1шт.

42

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

43

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, see Fig. 8-090 through 8-092

1шт.

S120587

HYDRAULIC HOSE,2.00" ID x 60.00"

- Bulk roll 2.00" ID x 60.00"

1шт.
