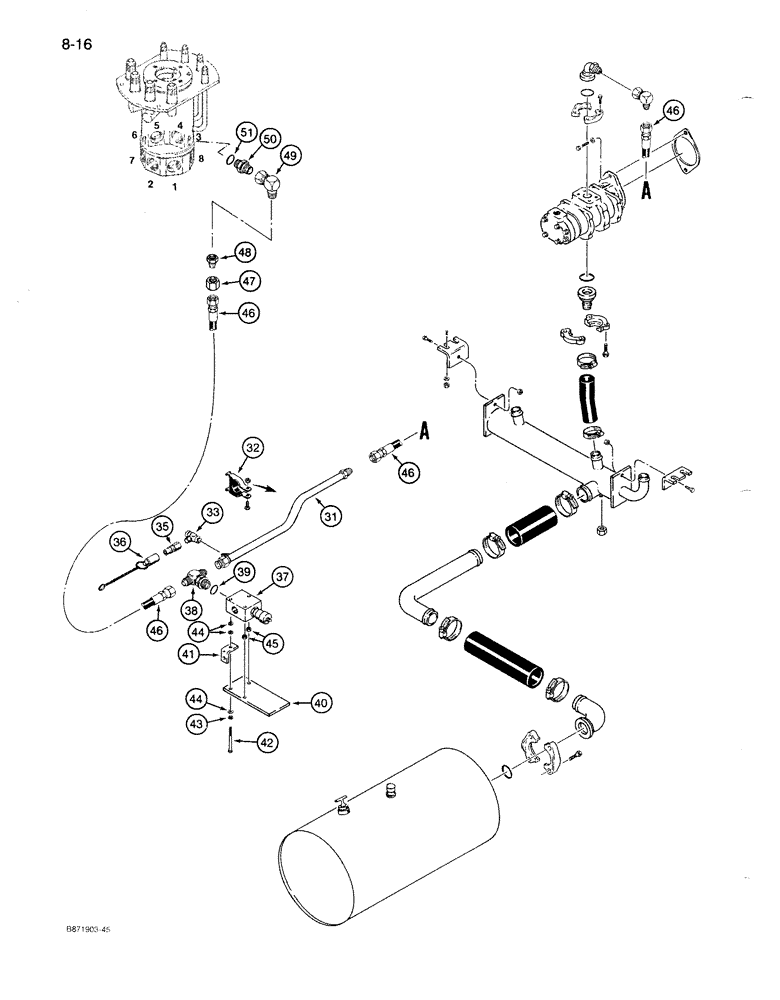

Запчасти Case 1085B (8-016) - TANDEM GEAR HYDRAULIC PUMP, SUCTION AND PRESSURE CIRCUIT (08) - HYDRAULICS

31

S242352

TUBE ASSY.,1.25" OD x 32.6, 3.95" L

TUBE - to relief valve tee

1шт.

32

S93266

CLAMP

- tube

1шт.

33

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- 1/4 inch PT branch x female PT x female PT, tube to power sensing valve

1шт.

35

S206607

DISC

COUPLING - quick disconnect, male, test

1шт.

36

S206608

CAP

- dust, with chain

1шт.

37

S241998

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, pressure line, parts list Fig. 8-078

1шт.

38

218-5191

TEE,1 5/8"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

- 1-5/16-12 adj O-ring branch x flare x 1-5/8-12 inch fl, to relief valve, Includes: Ref. 39

1шт.

39

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

40

S514895

PLATE

- mounting, relief valve

1шт.

41

S93424

ANGLE

BRACKET - relief valve mounting

1шт.

42

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

3шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

44

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

5шт.

45

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

46

S401530

HOSE ASSY.

HOSE - 20 inch (508 mm) long, pump to relief valve tee and tee to swivel port 3

2шт.

47

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - hex, 1-5/8 inch NF

1шт.

48

218-788

REDUCER,37º, 1 1/4" x 1" Tube

ADAPTER - reducing, 1-1/14 tube OD x 1-5/16-12 inch flare

1шт.

49

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree, 1-5/8-12 inch flare x swivel flare

1шт.

50

218-5041

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-7/8-12 inch O-ring, to swivel port 3

1шт.

51

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.
