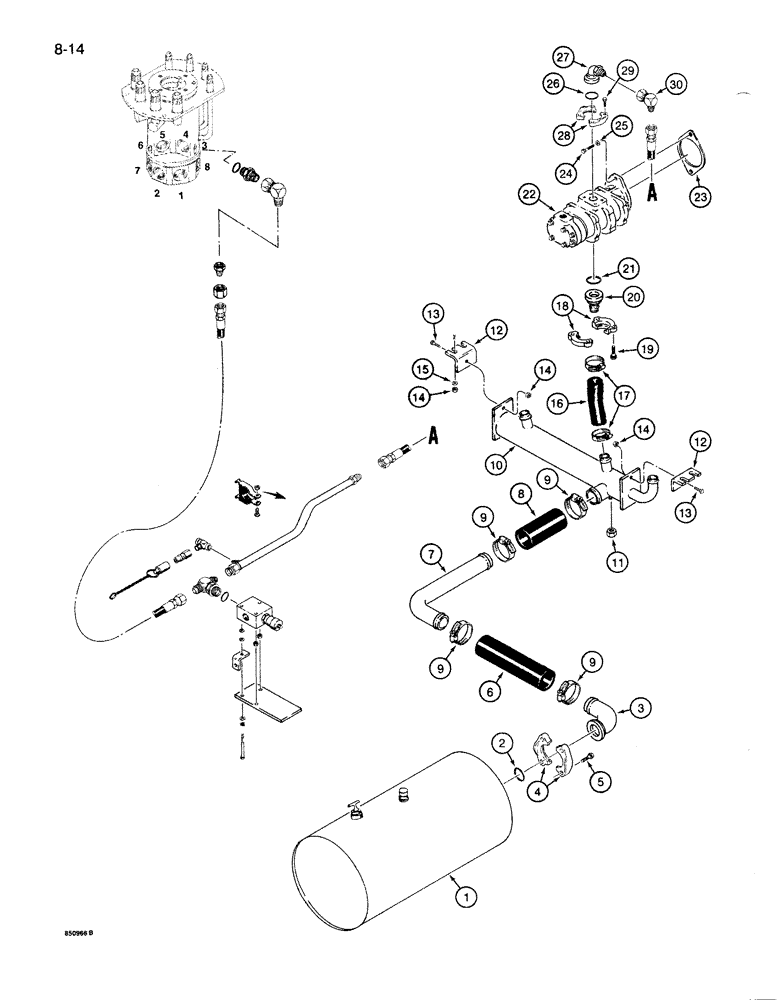

Запчасти Case 1085B (8-014) - TANDEM GEAR HYDRAULIC PUMP, SUCTION AND PRESSURE CIRCUIT (08) - HYDRAULICS

1

S514521

TANK

RESERVOIR - hydraulic oil, parts list Fig. 8-010

1шт.

2

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- suction tube at reservoir

1шт.

3

S236406

LINE,2.5" OD x 5.56, 4.56" L

TUBE - suction, at reservoir

1шт.

4

L14386

CLAMP

- split flange

2шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

6

S120121

HOSE,2.50" ID x 14.00"

- Cut to required length from S118464 bulk hose, See below 2.50" ID x 14.00"

1шт.

7

S239472

TUBE,2.5" OD x 17, 7" L

- 90 degree bend, to manifold

1шт.

8

S120124

HOSE - 7 inch (179 mm) long, cut to required length from S118464 bulk hose, see below

1шт.

9

214-376

CLAMP,#58, 2.68"-3.00", T-Bolt

- adj, 2-11/16 - 3 inch dia

4шт.

10

S618565

MANIFOLD

- hydraulic reservoir to hydraulic pump

1шт.

11

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch, manifold

1шт.

12

S116976

BRACKET

- manifold mounting

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

14

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

6шт.

15

S95569

WASHER

- flat, hardened

4шт.

16

S120581

HYDRAULIC HOSE,2.00" ID x 8.00"

- Cut to required length from S120580 bulk hose, See below 2.00" ID x 8.00"

1шт.

17

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- adj, 2-5/16 - 2-5/8 inch dia

2шт.

18

A14141

FLANGE

CLAMP - split flange

2шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

20

S118919

FLANGE

ADAPTER - hose to split flange

1шт.

21

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- tandem pump inlet

1шт.

22

REF

INSTRUCTION

PUMP ASSEMBLY - tandem gear, hydraulic, see Fig. 8-062 and 8-064 for correct pump

1шт.

23

S213792

GASKET

- tandem gear pump, use B17576 sealant, see below

1шт.

24

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

25

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 41/64 x 1-3/64 x 1/8, hardened

2шт.

26

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tandem gear pump outlet

1шт.

27

S234439

ELBOW

- 90 degree, special

1шт.

28

A12301

CLAMP,Half

CLAMP - split flange

2шт.

29

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

30

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

1шт.

S118464

HOSE,2.50" ID x 60.00"

- Bulk roll 2.50" ID x 60.00"

1шт.

S120580

HYDRAULIC HOSE,2.00" ID BULK

2.00" ID BULK

1шт.

B17576

GASKET MAKER FLUID

SEALANT - 3 oz (89 ml) of sealant in a tube, both sides of pump gasket, not shown

1шт.
