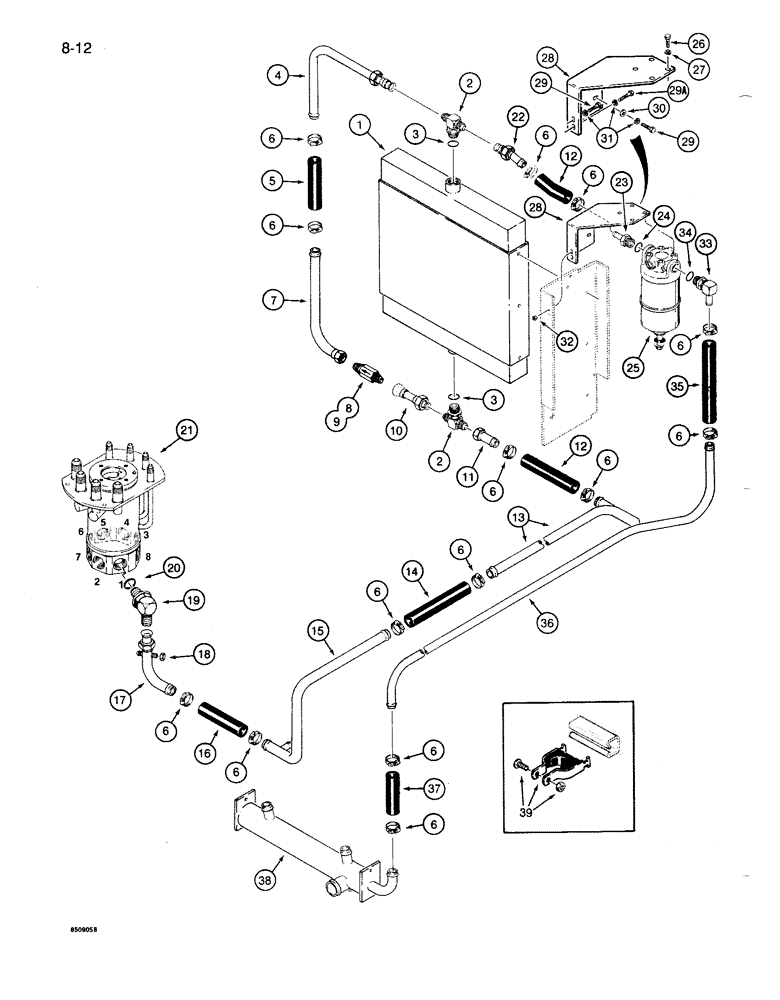

Запчасти Case 1085B (8-012) - HYDRAULIC OIL COOLER CIRCUIT (08) - HYDRAULICS

1

A171762

COOLER

OIL COOLER - hydraulic oil, for mounting parts see Figure 2-002

1шт.

2

218-5189

TEE,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 1-7/8-12 inch adj O-ring branch x flare x flare, Includes: Ref. 3

2шт.

3

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

4

S242539

TUBE ASSY.,1.5" OD x 14, 16.8" L

TUBE - upper

1шт.

5

S120504

HYDRAULIC HOSE,1.50" ID x 9.00"

- Cut from S120500 bulk hose, See below 1.50" ID x 9.00"

1шт.

6

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- adj, 1-13/16 - 2-1/16 inch dia

14шт.

7

S242540

TUBE ASSY.,1.5" OD x 18, 6" L

TUBE - lower

1шт.

8

S105386

VALVE

- check, return line, Includes: Ref. 9

1шт.

9

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- valve body to valve fitting

1шт.

10

S242541

TUBE ASSY.,1.6" OD x 6" L

TUBE - at lower tee

1шт.

11

S213720

TUBE,1.5" OD x 4" L

- lower tee to hose

1шт.

12

S120505

HYDRAULIC HOSE,1.50" ID x 11.00"

- Cut from S120500 bulk hose, See below 1.50" ID x 11.00"

2шт.

13

S241037

TUBE ASSY.,1.5" OD

TUBE - cooler to swivel, long

1шт.

14

S120507

HOSE,1.50" ID x 13.00"

- - Cut from S120500 bulk hose, See below 1.50" ID x 13.00"

1шт.

15

S514336

TUBE

- cooler to swivel, intermediate

1шт.

16

S120504

HYDRAULIC HOSE,1.50" ID x 9.00"

- Cut from S120500 bulk hose, See below 1.50" ID x 9.00"

1шт.

17

S238583

TUBE,1.5" OD x 5.5, 8.68" L

- return, to cooler

1шт.

18

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch, if used

1шт.

19

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, 1-7/8-12 inch flare x adj O-ring boss, to swivel port 1, Includes: Ref. 20

1шт.

20

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

21

REF

INSTRUCTION

SWIVEL ASSEMBLY - 8 port hydraulic, see Figures 8-090 through 8-092 for correct swivel

1шт.

22

S242538

TUBE ASSY.,1.5" OD x 60, 9" L

TUBE - upper tee to hose

1шт.

23

217-174

FITTING,1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

- stem, str, 1-1/2 hose ID x 1-7/8-12 inch O-ring, Includes: Ref. 24

1шт.

24

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

25

S616065

FILTER ASSEMBLY - hydraulic oil, parts list Fig. 8-056

1шт.

26

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

S516003

BRACKET

- filter

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

29a

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, in lower hole of bracket

1шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

3шт.

32

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

2шт.

33

217-359

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

ELBOW - 90 deg, 1-1/2 stem end x 1-7/8-12 inch adj O-ring, Includes: Ref. 34

1шт.

34

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

35

S120508

HYDRAULIC HOSE,1.50" ID x 15.00"

- Cut from S120500 bulk hose, See below 1.50" ID x 15.00"

1шт.

36

S241042

TUBE ASSY.,1.5" OD

TUBE - filter to manifold

1шт.

37

S120502

HYDRAULIC HOSE,1.50" ID x 7.00"

- Cut from S120500 bulk hose, See below 1.50" ID x 7.00"

1шт.

38

S618565

MANIFOLD

- hydraulic reservoir, for mounting parts see Fig. 8-014

1шт.

39

S98324

CLAMP

- tube

6шт.

S120500

HOSE,1.50" ID x 60.00"

- Bulk length 1.50" ID x 60.00"

1шт.
