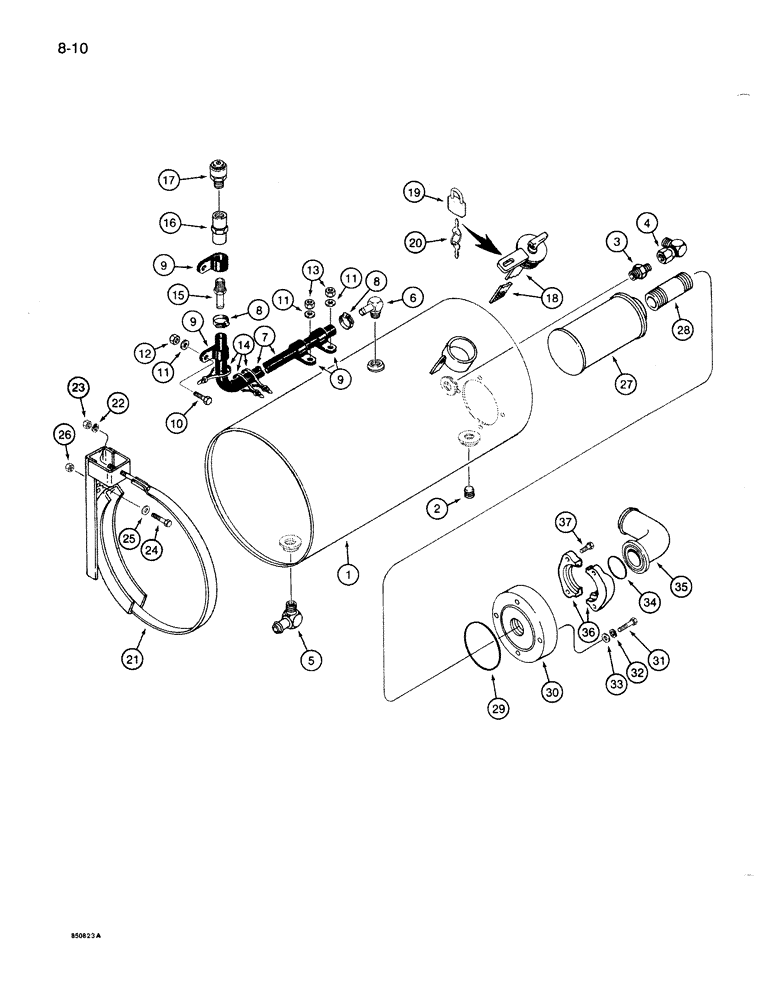

Запчасти Case 1085B (8-010) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

S514521

TANK

RESERVOIR - hydraulic oil

1шт.

2

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

1шт.

3

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 3/4 inch PT

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Hose to power sensing valve, For continuation of circuit see Figure 8-048 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

5

217-138

ELBOW - 90 degree, 1-1/2 inch stem end x PT, return hose from filter

1шт.

6

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degree, 3/4 inch stem end x PT, breather hose to reservoir

1шт.

7

S120598

LARGE HOSE

HOSE - reservoir to breather, 11.5 ft (3.5 m) long, cut from S118382 bulk hose, see below

1шт.

8

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Breather hose #16, 0.81/1.50 Type F Worm

2шт.

9

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- support, breather and breather hose

4шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

11

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

3шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

- stem, straight, 3/4 inch hose ID x PT, hose to coupling

1шт.

16

217-1104

HYD CONNECTOR,3/4"-14 NPTF, Female

COUPLING - pipe, 3/4 inch

1шт.

17

S91864

BREATHER

- hydraulic reservoir

1шт.

18

S235206

ELECTRICAL GAUGE

DIPSTICK - hydraulic reservoir

1шт.

19

D93753

PADLOCK

- dipstick, if used, Includes: Ref. 20

1шт.

20

R29555

KEY

- for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

S207826

BRACKET

ASSEMBLY - with hardware, reservoir mounting, Includes: Ref. 21 - 23

2шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - with welded stud

1шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

425-1110

NUT,5/8"-18, G5

1шт.

24

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

25

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, used in bracket slot only

2шт.

26

425-1010

NUT,5/8"-11, G5

4шт.

27

S513189

FILTER

STRAINER- hydraulic oil, in reservoir

1шт.

28

221-1966

NIPPLE, LUBE

NIPPLE - straight, 2 PT x 5 inch, extra strong

1шт.

29

A27842

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

- strainer cover

1шт.

30

S613318

FLANGE

COVER - strainer

1шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

34

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- tube from reservoir

1шт.

35

S236406

LINE,2.5" OD x 5.56, 4.56" L

TUBE - oil supply from reservoir

1шт.

36

L14386

CLAMP

- split flange, tube to reservoir cover

2шт.

37

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, use with Loctite 242

4шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.
