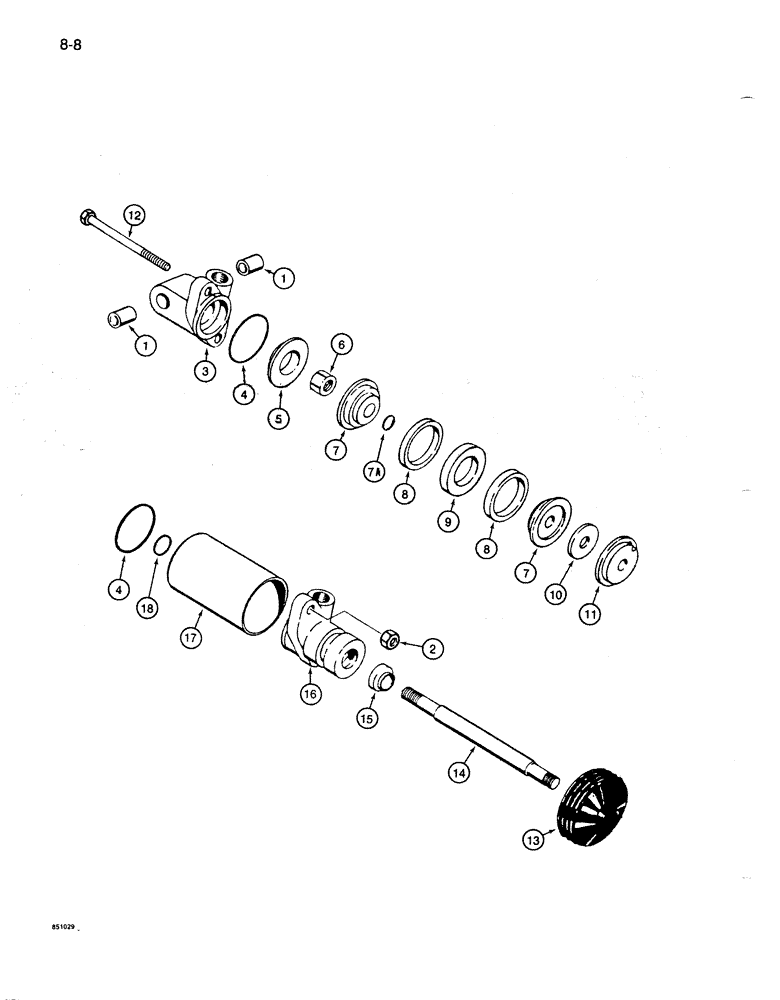

Запчасти Case 1085B (8-008) - HI-LOW SHIFTER AIR CYLINDER (08) - HYDRAULICS

S216320

CYLINDER

ASSEMBLY - hi and low shifter air, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

BUSHING - closed end cap

2шт.

2

131-498

LOCK NUT,1/4"-28, GB

NUT - light hex, self-locking, 1/4 inch NF

2шт.

3

NSS

NOT SOLD SEPARAT

CAP - closed end

1шт.

4

L30644

O-RING,1.114" ID x 1.254" OD x 0.07"

- end caps to tube

2шт.

Part of Cylinder Repair Kit, P/N S115846

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - rear stop

1шт.

6

131-180

LOCK NUT,5/16"-24, GC

NUT - light hex, self-locking, 5/16 inch NF

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - half

2шт.

7a

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Rod, nut end, between piston halves

1шт.

Part of Cylinder Repair Kit, P/N S115846

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston, u-cup

2шт.

Part of Cylinder Repair Kit, P/N S115846

1шт.

9

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Cylinder Repair Kit, P/N S115846

1шт.

10

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - front stop

1шт.

12

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

- hex, 1/4 NF x 3 inch

2шт.

13

S92198

BOOT

- dust seal

1шт.

Part of Cylinder Repair Kit, P/N S115846

1шт.

14

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

15

S92189

WIPER

- rod

1шт.

Part of Cylinder Repair Kit, P/N S115846

1шт.

16

NSS

NOT SOLD SEPARAT

CAP - rod end

1шт.

17

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

18

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- rod, front

1шт.

S115846

KIT

- cylinder repair, Includes: Ref. 4, 7A, 8, 9, 13, and 15

1шт.
