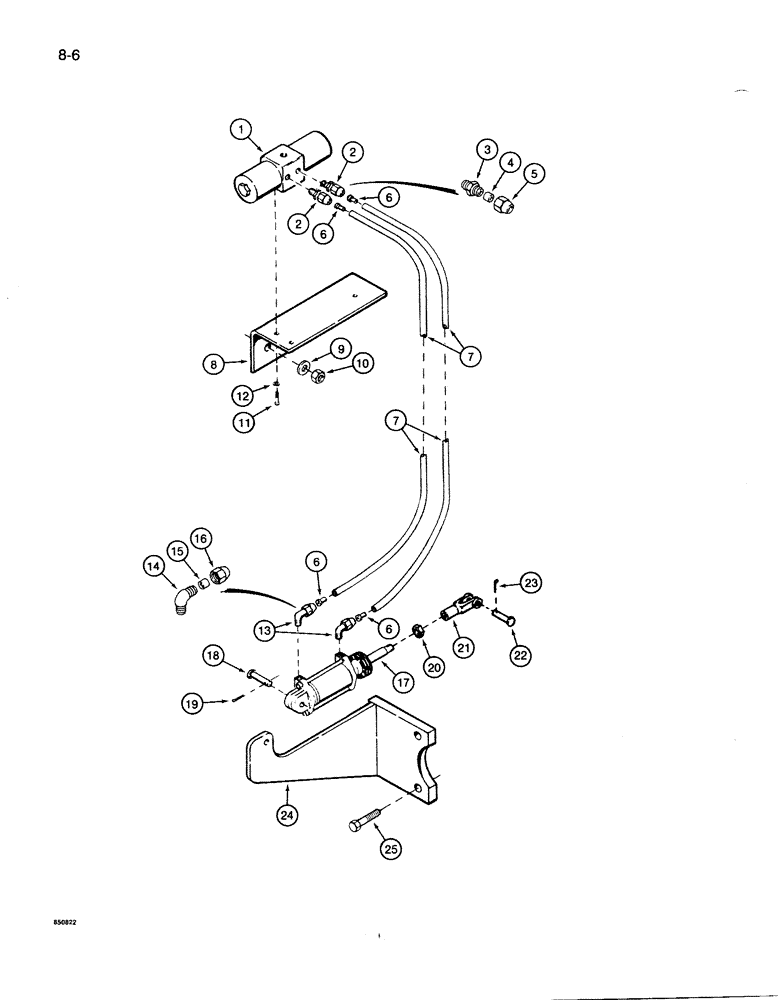

Запчасти Case 1085B (8-006) - HI-LOW SHIFTER AIR CONTROLS (08) - HYDRAULICS

1

S237187

SOLENOID

VALVE ASSEMBLY - air solenoid, parts list Fig. 4-044, Includes: Ref. 1 - 25

1шт.

2

222-1842

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, at air solenoid valve, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - adapter, 3/8 inch tube OD

1шт.

4

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

5

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

6

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD

4шт.

7

REF

INSTRUCTION

TUBE - nylon, air solenoid valve to air cylinder, 20 inch (508 mm) long, cut from S118405 bulk roll, see below

2шт.

8

S238978

BRACKET

- solenoid valve mounting, attaches to left-hand side of mainframe

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

10

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

11

169-106

SCREW - machine, Fillister head, No. 10 NC x 1-3/4 inch

2шт.

12

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, at air cylinder, Includes: Ref. 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - elbow, 3/8 inch tube OD

1шт.

15

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

16

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

17

S216320

CYLINDER

ASSEMBLY - air, parts list Fig. 8-008

1шт.

18

S10741

CLEVIS PIN

PIN - clevis, cylinder mounting, rear

1шт.

19

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

20

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

21

213-41

ADJUSTABLE CLEVIS,3/8"-24

1шт.

22

S10767

PIN

- clevis, air cylinder, Serial Range: clevis-transmission

1шт.

23

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

24

S514346

BRACKET

- air cylinder mounting, attaches to rear of transmission

1шт.

25

413-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex, 9/16 NC x 1-3/4 inch

2шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
