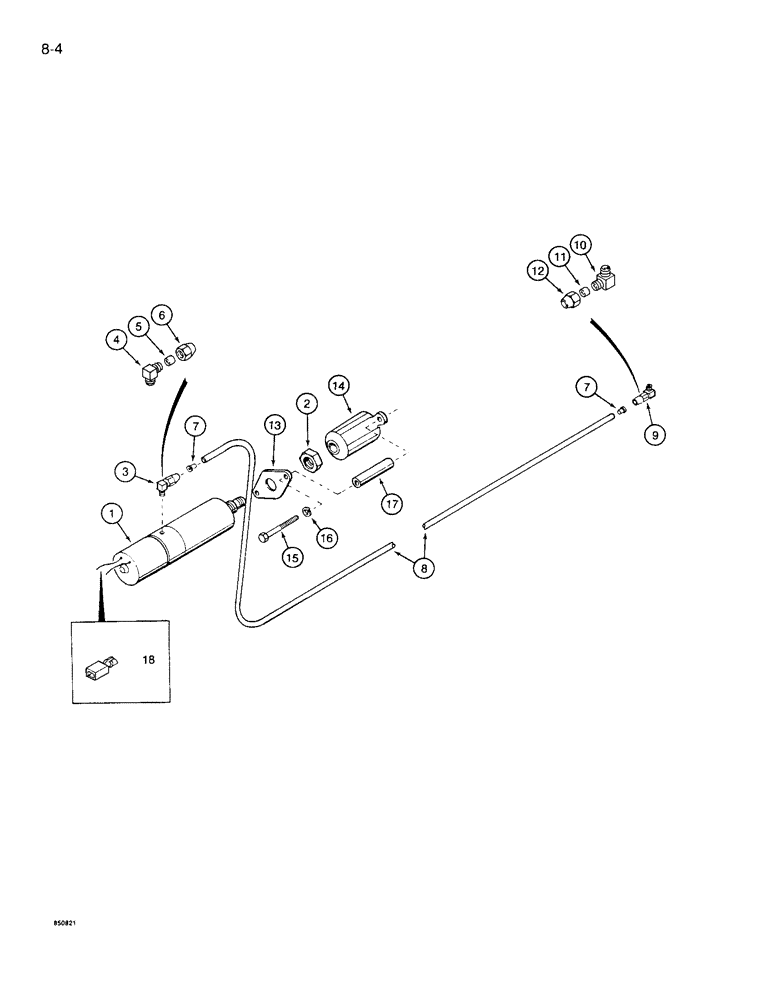

Запчасти Case 1085B (8-004) - FAST CROWD AIR CONTROL (08) - HYDRAULICS

1

S239838

CYLINDER

- air, fast crowd, with solenoid, Includes: Ref. 2

1шт.

2

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

1шт.

3

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, at air cylinder, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - elbow, 3/8 inch tube OD

1шт.

5

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

6

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

7

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD

2шт.

8

S119823

PLASTIC-RUBBER TUBE,0.375" OD x 105" L

TUBE - nylon, air cylinder to air manifold, 105 inch (2667 mm) long, cut from S118405 bulk roll, see below

1шт.

9

222-1848

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT, at air manifold, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - elbow, 3/8 inch tube OD

1шт.

11

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

12

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

13

S239842

PLATE

- adapter, air cylinder to control valve

1шт.

14

S240214

CAP

- control valve

1шт.

15

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

S117735

TUBE

SPACER - bolt, adapter plate

2шт.

18

S117294

ROD, CONNECTING

TERMINAL - brass, with nylon housing, air cylinder solenoid connection

2шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
