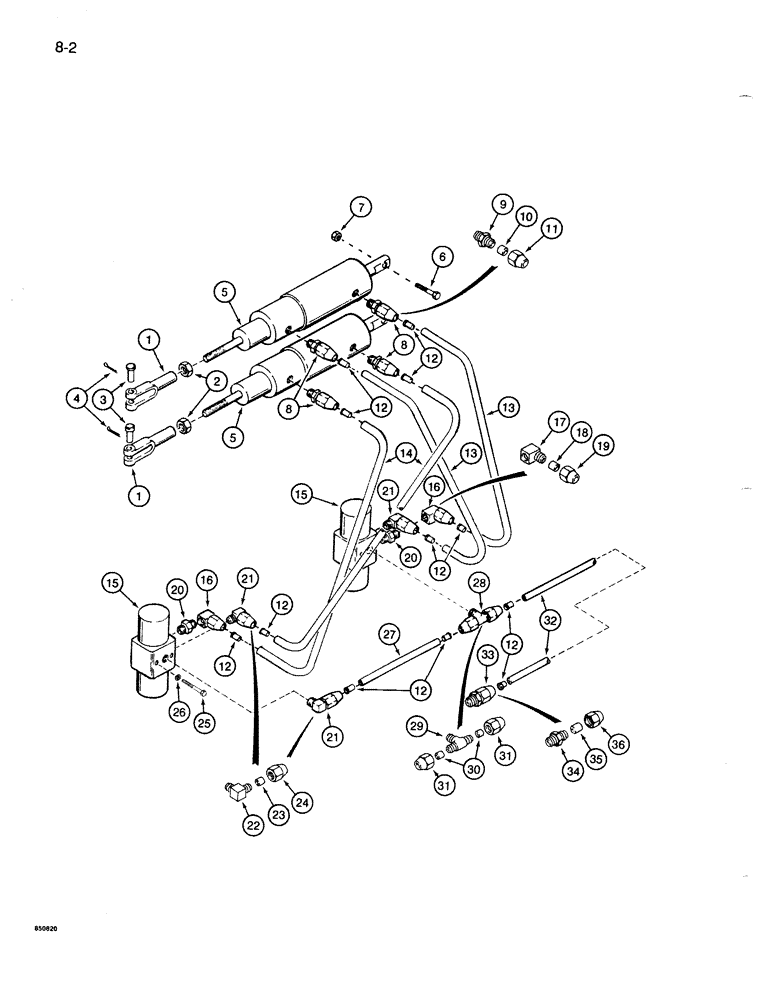

Запчасти Case 1085B (8-002) - OUTRIGGER AIR CONTROLS (08) - HYDRAULICS

S103765

YOKE

CLEVIS ASSEMBLY - air cylinder to outrigger control valve, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

CLEVIS - cylinder to control valve

1шт.

2

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

3

S10765

PIN

- clevis, 3/8 x 3/4 inch, grip length

1шт.

4

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

5

S221506

ASSEMBLY

CYLINDER - air

2шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

8

222-1839

FITTING,17/32"-24 x 1/8" NPT

ADAPTER - compression, 3/8 tube OD x 1/8 inch PT, at air cylinder, Includes: Ref. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

BODY - adapter, 3/8 inch tube OD

1шт.

10

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

11

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

12

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD

12шт.

13

S119464

PLASTIC-RUBBER TUBE,0.375" OD x 12" L

TUBE - nylon, upper air cylinder to rear solenoid valve, 12 inch (305 mm) long, cut from S118405 bulk roll, see below

2шт.

14

S119465

PLASTIC-RUBBER TUBE,0.375" OD x 16" L

TUBE - nylon, lower air cylinder to front solenoid valve, 16 inch (407 mm) long, cut from S118405 bulk roll, see below

2шт.

15

S237187

SOLENOID

VALVE ASSEMBLY - air solenoid, parts list Fig. 4-044

2шт.

16

222-2426

ELBOW

- 90 deg, compression, 3/8 tube OD x 1/4 inch fem PT, lower port of air solenoid valve, Includes: Ref. 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

BODY - elbow, 3/8 inch tube OD

1шт.

18

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

19

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

20

217-211

PIPE,Nipple, 1/4" NPT x 1 1/2"

NIPPLE - straight, 1/4 PT x 1-1/2 inch

2шт.

21

222-1848

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT, upper port of both solenoid valves and right-hand port of front solenoid valve, Includes: Ref. 22 - 25

3шт.

22

NSS

NOT SOLD SEPARAT

BODY - elbow, 3/8 inch tube OD

1шт.

23

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

24

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

25

169-106

SCREW - machine, Fillister head, No. 10 NC x 1-3/4 inch

4шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

27

S119467

PLASTIC-RUBBER TUBE,0.375" OD x 7" L

TUBE - nylon, front solenoid valve to tee at rear solenoid valve, 7 inch (178 mm) long, cut from S118405 bulk roll, see below

1шт.

28

222-1878

TEE

- compression, 1/4 PT br x 3/8 inch tube OD x tube OD, at rear air solenoid valve, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - tee, 3/8 inch tube OD

1шт.

30

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

2шт.

31

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

2шт.

32

S119466

PLASTIC-RUBBER TUBE,0.375" OD x 84" L

TUBE - nylon, rear air solenoid valve to air manifold, 84 inch (2134 mm) long, cut from S118405 bulk roll, see below

1шт.

33

222-1842

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - adapter, 3/8 inch tube OD

1шт.

35

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

36

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
