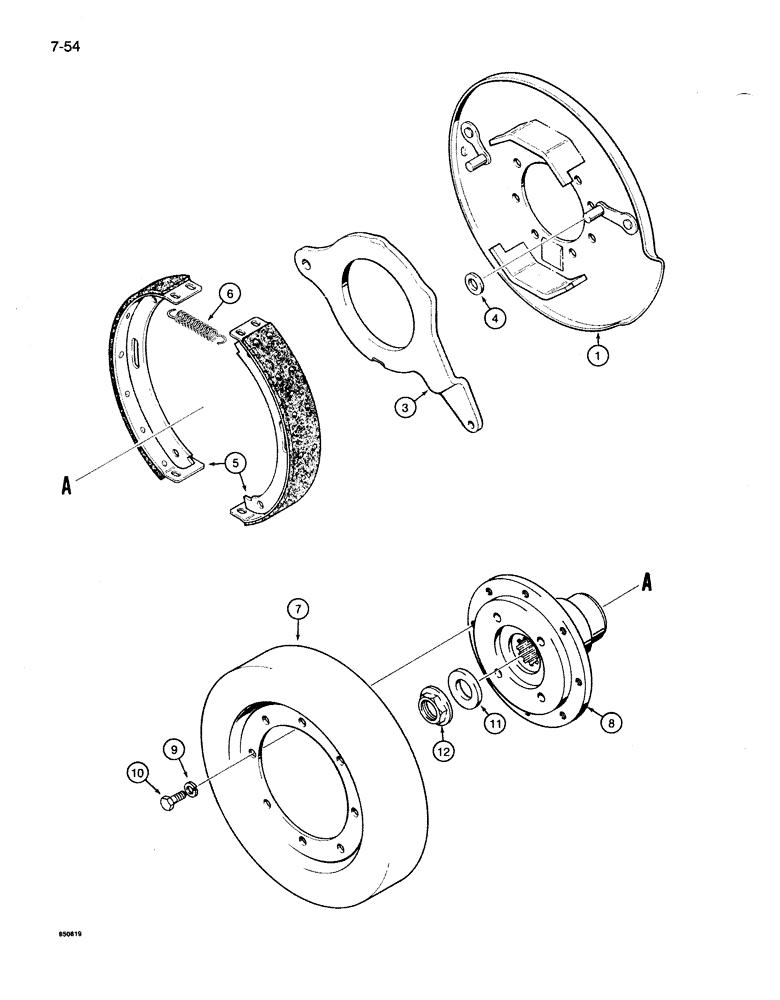

Запчасти Case 1085B (7-054) - PARKING BRAKE (07) - BRAKES

REF

INSTRUCTION

AXLE ASSEMBLY - rear drive, see Figure 6-2 for axle identification, Includes: Ref. 1 - 12

1шт.

REF

INSTRUCTION

DIFFERENTIAL CARRIER ASSEMBLY - rear axle, Includes: Ref. 1 - 12

1шт.

S238140

BRAKE

ASSEMBLY - parking, Includes: Ref. 1 - 7

1шт.

1

S116400

PLATE

- backing, also order item 2 kit

1шт.

2

S96076

PAWL

KIT - pawl and bolts, required when replacing backing plate, not shown

1шт.

3

A12779

LEVER

ACTUATOR - parking brake

1шт.

4

A16642

WASHER

ROLLER - brake actuator

1шт.

5

A12780

BRAKE SHOE

SHOE AND LINING ASSEMBLY - see lining kit below

2шт.

6

A12778

SPRING

- brake shoe

2шт.

7

A25271

BRAKE DRUM

DRUM - brake

1шт.

8

S113917

YOKE

FLANGE - differential pinion shaft

1шт.

9

492-11038

LOCK WASHER,3/8"

brake drum to flange 3/8"

8шт.

10

S12342

BOLT

- brake, Serial Range: drum-flange

8шт.

11

S114895

WASHER

- special, differential pinion shaft

1шт.

12

S113912

LOCK NUT

- differential pinion shaft

1шт.

A12843

PACKAGE

KIT - brake lining, includes linings and rivets for both brake shoes

1шт.
