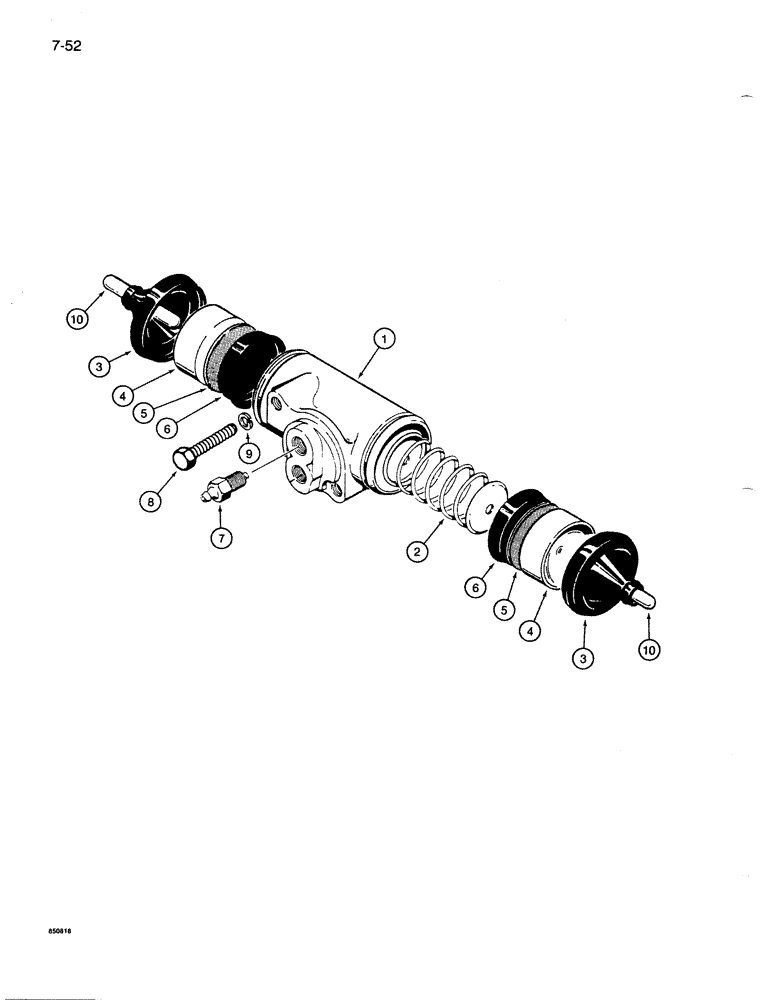

Запчасти Case 1085B (7-052) - WHEEL BRAKE CYLINDER (07) - BRAKES

REF

INSTRUCTION

AXLE ASSEMBLY - front steering, see Figure 6-2 for axle identification, Includes: Ref. 1 - 10

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear drive, see Figure 6-2 for axle identification, Includes: Ref. 1 - 10

1шт.

S114875

CYLINDER

ASSEMBLY - wheel brake, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder assembly

1шт.

2

S114879

SPRING

- cylinder assembly

1шт.

S238632

KIT

- cylinder repair, Includes: Ref. 3 - 6

1шт.

3

S74636

BOOT

- cylinder

2шт.

4

S114877

PISTON

- cylinder

2шт.

5

S107860

SPACER

DISC - backup, cylinder cup

2шт.

6

S114878

CUP

- cylinder

2шт.

7

A19894

SCREW,2 5/8"

- air removal

2шт.

8

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, grade 8, used in rear axle only

4шт.

8

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex, 3/8 NC x 7/8 inch, grade 8, used in front axle only

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

S117229

LINK

ROD - push, used in rear axle brakes only

4шт.

10

S114882

YOKE

ROD - push, used in front axle brakes only

4шт.
