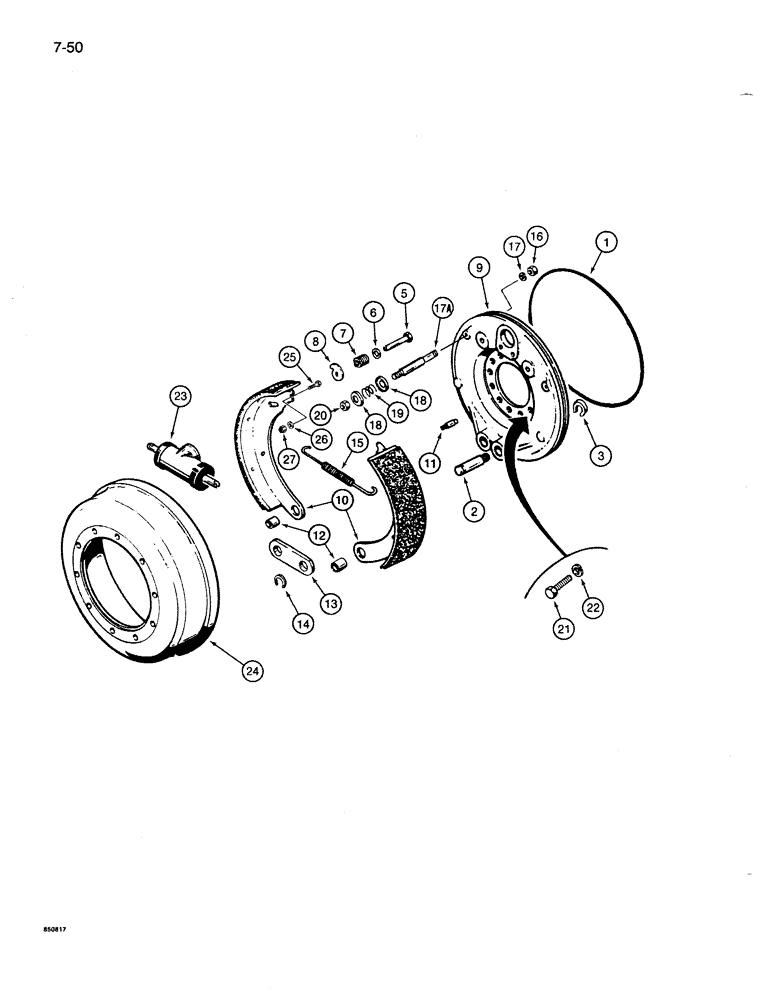

Запчасти Case 1085B (7-050) - BRAKES, REAR DRIVE AXLE (07) - BRAKES

REF

INSTRUCTION

AXLE ASSEMBLY - rear drive, see Figure 6-2 for axle identification, Includes: Ref. 1 - 27

1шт.

N13064

SPIDER ASSY.

PLATE ASSEMBLY - brake mounting, Includes: Ref. 1 - 9

1шт.

1

A15003

SEAL

- brake drum

1шт.

2

A15012

PIN

- brake shoe mounting

2шт.

3

A14997

RING, SNAP

CLIP - C-type, brake shoe mounting pin, inner side of backing plate7

2шт.

5

A15968

PIN ASSY.

PIN - cam mounting

1шт.

6

A15007

WASHER

- flat, cam mounting pin

1шт.

7

A15013

VALVE SPRING

SPRING - cam

2шт.

8

A15016

CAM

- brake shoe

2шт.

9

NSS

NOT SOLD SEPARAT

PLATE - backing, brake mounting

1шт.

S300476

BRAKE PAD

SHOE AND LINING ASSEMBLY - brake, rear axle, replaces S117221 shoe assembly, Includes: Ref. 10 - 12

4шт.

10

NSS

NOT SOLD SEPARAT

SHOE AND LINING - see lining kit below

1шт.

11

A15010

PIN

- stop, brake shoe

1шт.

12

A15004

BUSHING

- brake shoe

1шт.

13

A16724

LINK

- brake shoe assemblies

2шт.

14

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

CLIP - C-type, brake shoe mounting pin, at link

4шт.

15

A15014

FITTING

SPRING - brake shoe

2шт.

16

S117227

NUT

- guide pin, inner side of backing plate

4шт.

17

S117230

WASHER

- lock, guide pin, inner

4шт.

REF. #17A is S117231 pin.

1шт.

18

S117228

WASHER

SEAT - spring, guide pin

8шт.

19

S117400

SPRING

- guide pin

4шт.

20

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8 inch NF

4шт.

21

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

28шт.

22

L30737

WASHER

- lock, backing plate

28шт.

23

S114875

CYLINDER

ASSEMBLY - wheel brake, parts list Fig. 7-052

2шт.

24

A14993

DRUM BRAKE ASSY

DRUM - brake

2шт.

25

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex, 7/16 NC x 1-3/4 inch, grade 8

4шт.

26

A13136

RING

WASHER - flat, special

4шт.

27

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex, self-locking, 7/16 inch NC

4шт.

S300486

SPARE PART SET

KIT - brake lining, includes linings and rivets for two wheels, replaces L32728 brake lining kit

1шт.
