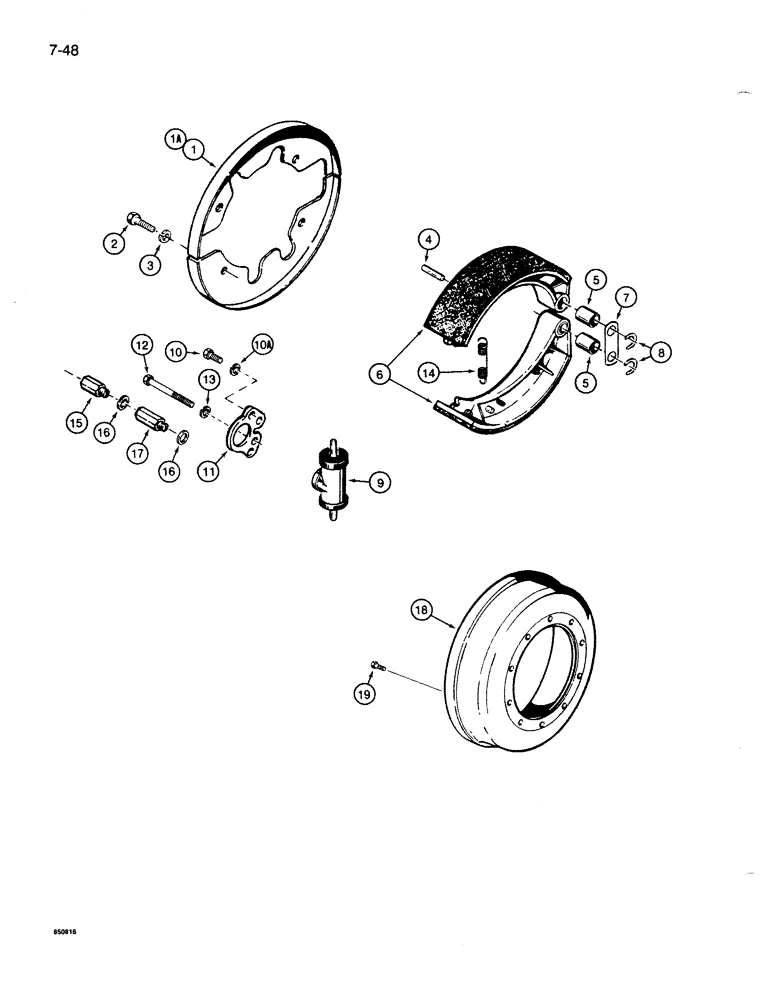

Запчасти Case 1085B (7-048) - BRAKES, FRONT STEERING AXLE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
S618902
CENTER AXLE
AXLE ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 19
1шт.
S619018
AXLE
ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 19
1шт.
S619554
AXLE
ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 19
1шт.
1
L30595
KIT
SHIELD - dust, use one of each per side
2шт.
1a
L30596
SHIELD
- dust, use one of each per side
2шт.
2
26-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 8
- hex, 3/8 NC x 1/2 inch, grade 8
8шт.
3
492-11038
LOCK WASHER,3/8"
8шт.
L34054
BRAKE SHOE
SHOE AND LINING ASSEMBLY - left-hand, Includes: Ref. 4 - 6
2шт.
N13061
BRAKE SHOE
SHOE AND LINING ASSEMBLY - right-hand, Includes: Ref. 4 - 6
2шт.
4
A45151
PIN
- brake shoe
1шт.
5
N13062
BUSHING
- brake shoe
1шт.
6
NSS
NOT SOLD SEPARAT
SHOE AND LINING - see lining kit below
1шт.
7
S117218
LINK
- brake shoe anchor pin, used with S618902 axle
2шт.
7
N13646
TURBINE
LINK - brake shoe anchor pin, used with S619018 and S619554 axle
2шт.
8
A28253
RING
- snap, brake shoe pin
4шт.
9
S114875
CYLINDER
ASSEMBLY - wheel brake, parts list Fig. 7-052
2шт.
10
26-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 8
- hex, 3/8 NC x 7/8 inch, grade 8
4шт.
10a
492-11038
LOCK WASHER,3/8"
4шт.
11
L30602
ADAPTER
- wheel cylinder
2шт.
12
26-780
BOLT,Hex, 7/16" - 14 x 5", Gr 8
- hex, 7/16 NC x 5 inch, grade 8
4шт.
13
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
14
A15071
SPRING
- brake shoe
2шт.
15
A12989
ADAPTER
- hose from brake actuator
2шт.
16
L114099
WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk
GASKET - adapter and extension
4шт.
17
A15054
EXTENSION
- adapter to brake cylinder
2шт.
18
L30851
DRUM
- brake
2шт.
19
26-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8
- hex, 5/8 NC x 1-1/2 inch, grade 8, brake drum to hub
38шт.
L34056
KIT
- brake lining, includes linings and rivets for two wheels
1шт.
Выбрано товаров: 28
