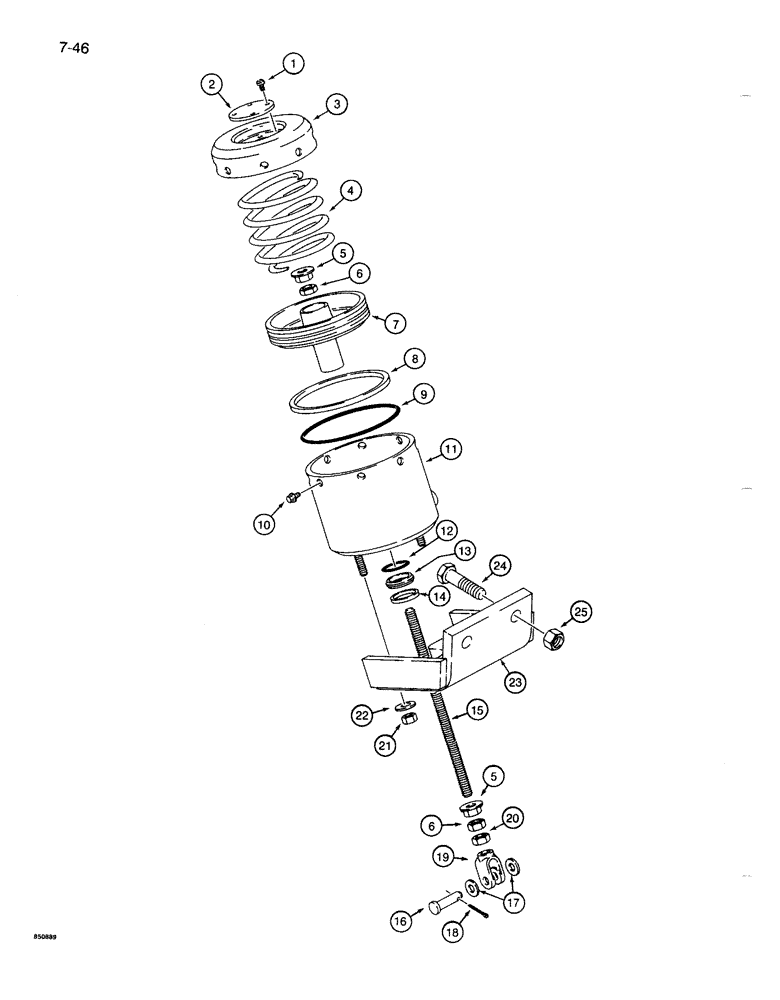

Запчасти Case 1085B (7-046) - PARKING BRAKE AIR CHAMBER (07) - BRAKES

S217432

CHAMBER

ASSEMBLY - air, parking brake, Includes: Ref. 1 - 15

1шт.

1

S91834

SCREW

- special, plate mounting

4шт.

2

S91833

PLATE

- cover

1шт.

3

S91828

SUPPORT

COVER - air chamber

1шт.

4

S89900

SPRING

- piston return

1шт.

5

S89907

FLANGE NUT

- special

2шт.

6

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

7

S219365

PISTON

- air chamber

1шт.

8

S89912

WIPER

- felt ring, piston

1шт.

9

S6028

O-RING,5.725" ID x 6.275" OD x 0.275"

- piston

1шт.

10

S89902

BOLT

- special, air chamber cover mounting

8шт.

11

S219364

CYLINDER

- brake air chamber

1шт.

12

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- cylinder

1шт.

13

S89913

BUSHING

- nylon, cylinder

1шт.

14

S89914

OIL SEAL

RING - backup, bushing

1шт.

No Longer Needed.

1шт.

15

S91832

EXTENSION

ROD - extension

1шт.

16

S10773

PIN

- clevis, special

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

18

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

19

L35613

YOKE

- brake actuator

1шт.

20

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

1шт.

21

131-36

LOCK NUT,5/8"-18

NUT - light hex, self-locking, 5/8 inch NF

2шт.

22

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch, hardened

2шт.

23

S232177

BRACKET

- air chamber mounting

1шт.

24

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

25

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.
